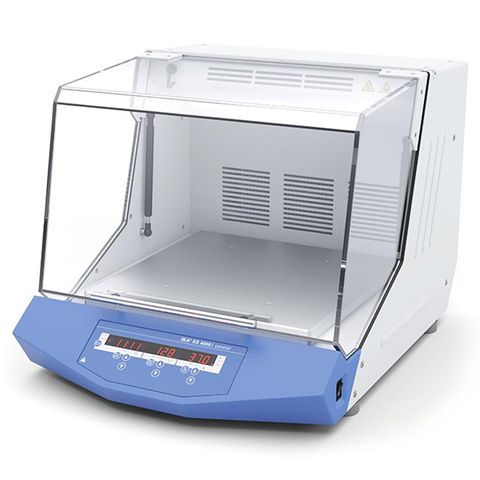

Shaker IKA Orbital Incubator KS4000i

Stock:

Out of Stock

Downloads

Innovative incubator shaker design allowing unattended operation in a temperature-controlled environment.

Features and Benefits:

Large LED display for speed and time settings
Controls with antimicrobial coating for reduction of bacteria
integrated PID temperature control *use of two PT1000 temperature sensors)
Junction box in the workspace for connection of an additional temperature sensor e.g. PT1000.60
Electronic temperature and speed control
Electronic timer switch: 0-999h (set by the minute or by the hour)
Unit switches off automatically if disturbed
Unit stops automatically when hood is lifted
Collecting tray with drain hose on rear of unit
Simple operation
All functions can be controlled and documented with labworldsoft
Attachments are not included, please order separately

Technical Data:

Type of movement	Orbital
Shaking stroke	20mm
Permissible shaking weight (incl. attachment)	20kg
Motor rating input	82W
Motor rating output	24W
Permissible ON-time	100%
Speed min (adjustable)	10rpm
Speed range	10 - 500rpm
Speed display	LED
Speed deviation	+/-5rpm
Speed adjustment	1rpm steps
Timer	Yes
Timer display	7 segment LED
Timer setting range	1 - 59,940min
Operating mode	Timer and continuous operation
Heating temperature range	room temp +5c - 80c
Heat output	1,000W
Set temperature resolution	+/-0.1K
Control accuracy with sensor (1 vessel 0.5L H2O, RT22c, T=37c)	+/-0.5K
Temperature display	Yes
Temp stability (1 vessel 0.5L, RT25C, T=37c)	+/-0.1K
Operating area inner chamber	440 x 440 x 352mm
Total volume inner chamber	90L
Raw material housing	Sheet metal powder coat
Raw material front foil	Polyester
Temperature stability (1 vessel 0.5L, RT 25c, T=37c)	+/-0.05K
Temperature homogeneity (5 vessel 0.5L; RT25c, T=37c)	+/-0.5K
Height with open hood	875mm
Dimensions (W x H x D)	580 x 520 x 750mm
Weight	50kg
Protection class	IP30
RS232 interface	Yes
