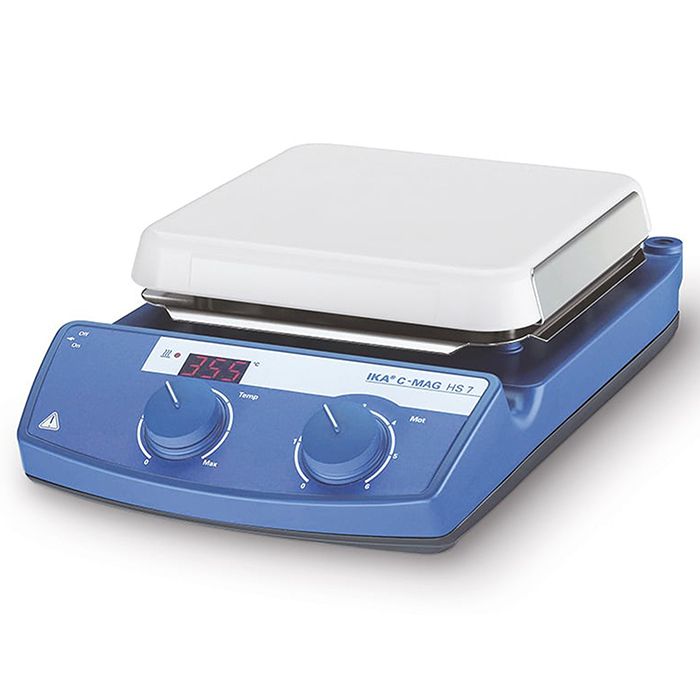

Stirrer Magnetic Hotplate IKA C-Mag HS7

Stock:

1 - 9

Downloads

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

Features and Benefits:

Powerful motor for stirring quantities of up to 10 l (H2O)
Fixed safety circuit of 550 °C
Hot Top indicator >> hot surface warning to prevent burns!
Exact temperature setting via digital display (LED)
Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
Digital error code display
Elevated control panel for protection against leaking liquids

Technical Data:

Number of Stirring Positions	1
Stirring Quantity Max. Per Stirring Position (H2O)	10L
Maximum Load	15Kg
Motor Rating Output	1.5W
Direction of Rotation	Left
Speed Adjustment	Scale (0 - 6)
Speed Range	100 - 1,500rpm
Stirring Bar Length Max	80mm
Heat Output	1,000W
Temperature Display Set Value	LED
Heating Temperature Range	50 - 500c
Heat Control	Turning Knob
Temperature Setting Resolution of Heating Plate	5K
Connection for ext. Temperature Sensor	ETS-D5
Fixed Safety Circuit	550c
Set-up Plate Material	Ceramic
Se-up Plate Dimensions	180 x 180mm
Heating Rate (1L H2O in H1500)	5K / min
Dimensions (W x H x D)	220 x 105 x 335mm
Weight	5Kg
Protection Class According to DIN EN 60529	IP21
