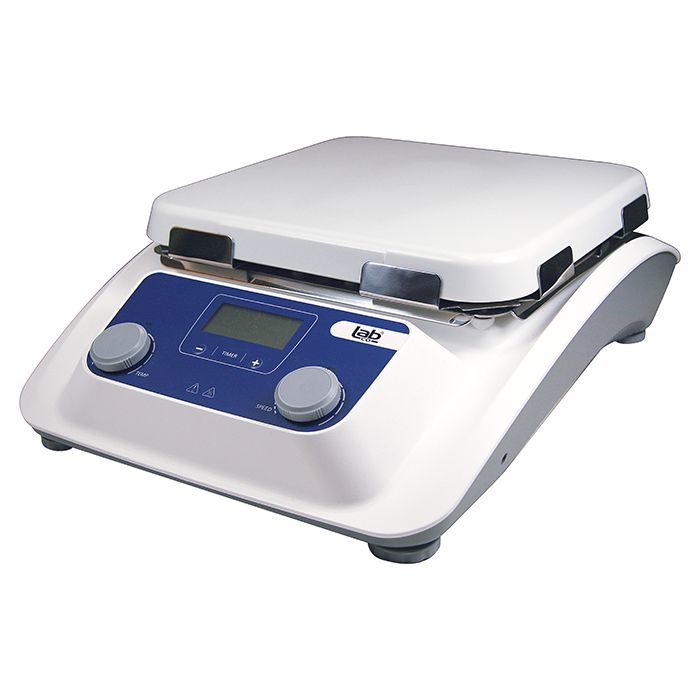

Stirrer Magnetic Hotplate 30L LabCo - Glass Ceramic Plate 254 x 254mm

Stock:

1 - 9

Downloads

Features and Benefits:

Stirs up to 30L
Heats up to 500C degrees
Large square ceramic glass plate
Resistant to corrosion & easy to clean
Elevated control panel and side groove design for protection against spills & reduces the risk of internal damage
HOT warning indicating residual heat
Digital LCD displays both set & actual temperature & speed
Built-in PID control ensures safe heating 7 provides overheating protection with an accuracy at +2
External PT1000 temperature sensor improves accuracy to +0.2C degrees
Automatic recognition of PT1000 once connected
Maintenance free DC Brushless motor

Technical Data:

Plate Dimension	254 x 254 mm
Plate Material	Glass Ceramic
Maximum Stirring Volume	30L
Maximum Magnetic Stirrer Bar Length	80mm
Speed Range	100 - 1,500 rpm
Display	Digital LCD
Stirring Positions	1
Protection Class	IP21
Motor Type	DC Brushless
Motor Rating Input	18W
Motor Rating Output	10W
Power	1400W
Voltage	240V/60Hz
Heating Output	10350W
Heating Temperature	Ambient to 500C degrees
Safety Temperature	540C
Temperature Display Accuracy	+0.1C
Residual Heat Warning	Yes, > 50C
Dimensions (WxDxH)	328 x 424 x 138 mm
Weight	7.18Kg
