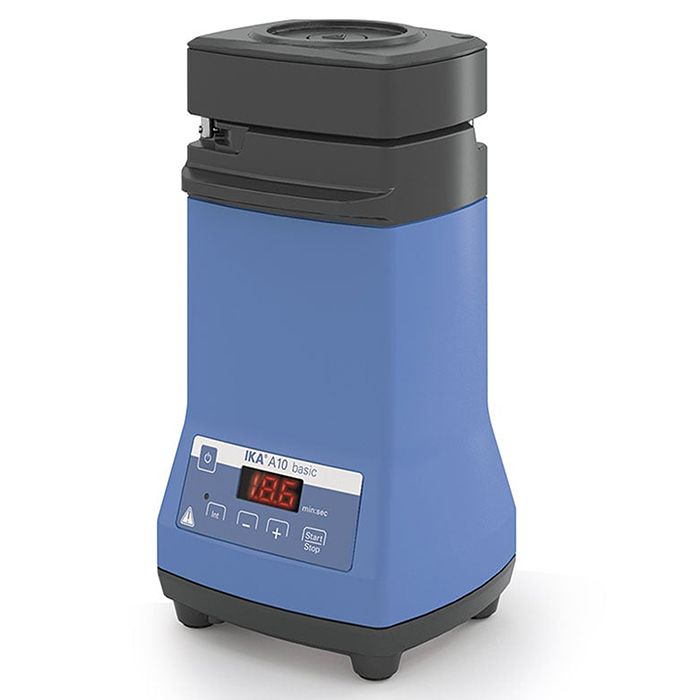

Mill IKA A10 Basic

Stock:

1 - 9

Add to Favourites

Downloads

Description

The redesigned batch mill grinds hard, brittle, soft and fibrous materials for volumes up to 50 mL. Because samples may be embrittled directly in the grinding chamber; tough, oily and aqueous samples can also be grinded. The development of the mill placed particular emphasis on safety. The mill will only start when the lid is closed and can only be opened at standstill. A quick stop feature further increases the safety of the user. Test results of the new A 10 basic are comparable with the ones of the previous model A 10, due to the same grinding chamber, cutter geometrics and speed.

Features and Benefits:

Digital timer
Counter: Display of grinding time
Interval function
Brushless motor for long service life and low noise level
Integrated cooling connections
Error code display
Simple handling with keypads
Easily exchangeable beater/cutter for a variety of applications
Grinding chamber reduction for small sample sizes and stainless steel cutter A 10.1 included with delivery
Bayonet lock for lid to enable simple and safe locking

Technical Data:

Process Type	Batch
Operating Principle	Cutting / Impact
Motor Rating Input	300W
Motor Rating Output	240W
Speed Max	25,000rpm
Speed Deviation	+/-500rpm
Circumferential Speed Max	73m/s
Useable Volume Max	50mL
Feed Hardness Max	5 Mohs
Feed Grain Size Max	6mm
Material beater/cutter	Stainless Steel 1.4034
Material Milling Chamber	Stainless Steel 1.4301
Milling Chamber, can be cooled with water	Yes
Mill Feed can be cooled in milling chamber with dry ice	Yes
Dimensions (W x H x D)	130 x 250 x 145mm
Weight	3.13Kg
