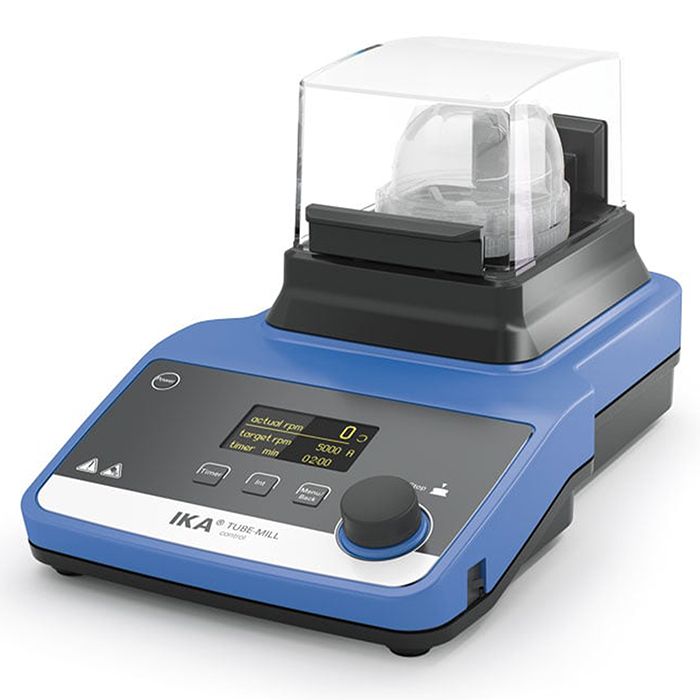

Mill IKA Tube Mill Control

Stock:

Out of Stock

Add to Favourites

Downloads

Description

The world’s first patented Tube Mill control is a batch mill with disposable grinding chamber. Eliminates possibility of cross-contamination and the effort of cleaning. The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time. The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials. It is especially suitable for grinding seeds, such as corn and wheat. During development of the mill, particular emphasis was placed on security. The mill will only start when the hood is closed. When the grinding chamber is not inserted properly or not closed properly, the drive unit will display an error message and the drive will not start. During operation, the grinding chamber cannot be opened. The drive and the grinding chambers are secured with a labyrinth seal. No dust can escape from the chamber or penetrate the drive.

Features and Benefits:

Clearly arranged, multilingual OLED-display
Timer, adjustable from 5 s to 3 min
USB interface for control and documentation of all the parameters
Interval operation available
Infinitely variable speed from 5000 to 25000 rpm
Various operating modes
Adjustable safety speed
Adjustable safety time
Programmable and storable test conditions
Error Code Display
Reproducible test results
Easy operation with touch keypad
Dust proof sealed housing
Quiet operation

Technical Data:

Motor Rating Input	100W
Motor Rating Output	80W
Speed Range	5,000 - 25,000rpm
Process Type	Batch
Circumferential Speed Max	65 m/s
Useable Volume Max	40mL
Feed hardness Max	5 Mohs
Feed Grain Size Max	10mm
Mill Feed can be cooled in milling chamber with dry ice	Yes
Operating Principle	Cutting / Impact
Speed Deviation	+/- 2%
Dimensions (W x H x D)	180 x 170 x 300mm
Weight	2.7Kg
USB Interfact	USB-B
