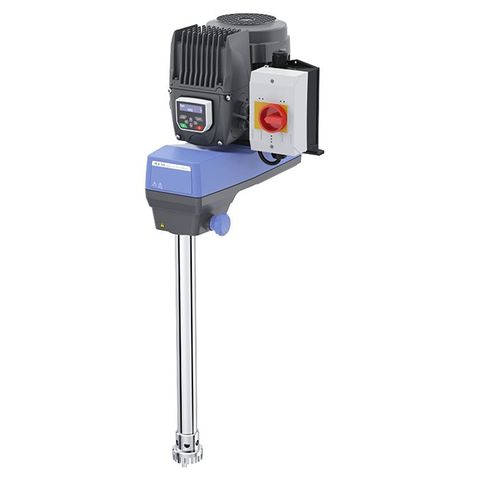

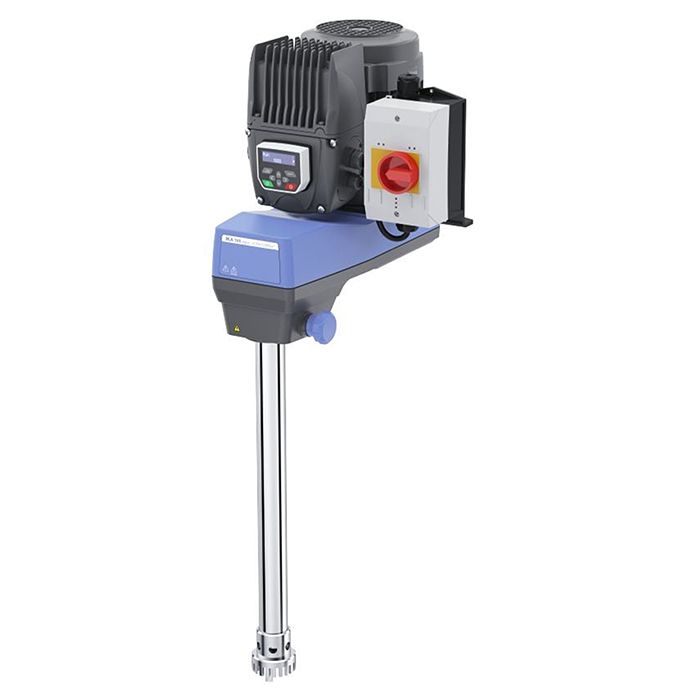

Homogeniser IKA T65 digital

Stock:

Out of Stock

Add to Favourites

Downloads

Technical Data Sheet

Description

Extremely powerful dispersing instrument for volumes from 2 - 50 L (H2O) for typical pilot plant stations with digital speed display. It offers a wide speed range from 1000 – 9,500 rpm that enables users to work at high circumferential speeds even with small rotor diameters. Three rotor-stator configurations guarantee a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

Features and Benefits:

Digital speed display
Electronic speed control
Electronic overload protection
Plug-in connectors facilitate exchange of dispersing elements
Optional stainless steel dispersing elements for use under vacuum and pressure
Error code display
Mains cable (2.5 m) and SI 400 safety switch are available as accessories (not included with delivery)

The device requires a 3-phase electricity supply in order to operate. The connection of the unit to the power supply must be done by a qualified electrician. Wiring diagrams are included in the manual for reference.

Technical Data:

Motor Rating Input	2,600W
Motor Rating Output	2,200W
Volume range (H20)	2 - 50L
Viscosity Max	5,000 mPas
Speed Range	1,000 - 9,500rpm
Speed Deviation	3%
Speed Display	7 Segment LED
Speed Adjustment	Stepless
Noise Without Element	75dB(A)
Process Type	Batch
Dimensions (W x H x D)	300 x 420 x 400mm
Weight	35Kg
Protection Class	IP54
