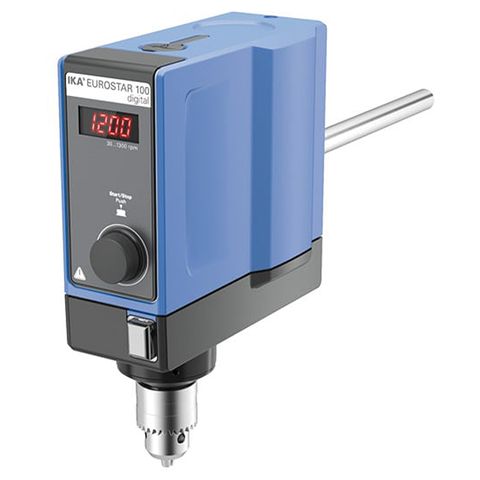

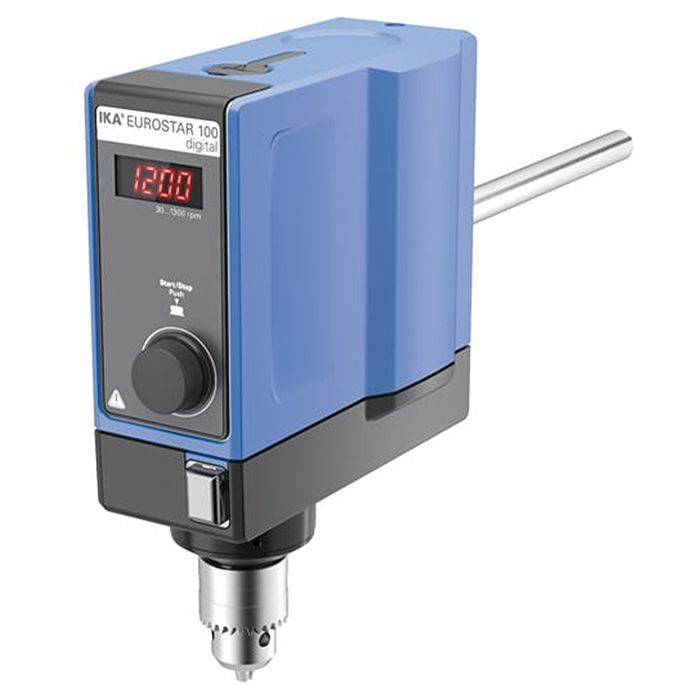

Stirrer Overhead IKA EUROSTAR 100 Digital
Downloads
Description
Powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 – 1300 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.
Features and Benefits:
- Digital speed display
- Infinitely adjustable speed
- Push-through agitator shafts
- Overload protection
- Short-term overload operation
- Slim casing
- Quiet operation
- Error code display
Technical Data:
Stirring Quantity Max (H20) 100L Motor Rating Input 186W Motor Rating Output 136W Motor Principle Brushless DC Speed Display 7 Segment LED Speed Range 0/30 - 1,300rpm Viscosity Max 70,000mPas Output Max at Stirring Shaft 136W Permissible On Time 100% Torque Max at Stirring Shaft 100Ncm Speed Adjustment Stepless Setting Accuracy Speed +/-1rpm Deviation of Speed Measurement n>300rpm +/- 1% Deviation of Speed Measurement n<300rpm +/-3rpm Stirring Element Fastening Chuck Chuck Range Diameter 0.5 - 10mm Hollow Shaft, inner diameter 11mm Hollow Shaft, (push through - when stopped) Yes Fastening on Stand Extension arm Extension arm diameter 16mm Extension arm length 220mm Speed Control Electronic Nominal Torque 1Nm Housing Material Alu-cast coating / thermoplastic polymer Dimensions (W x H x D) 86 x 248 x 208mm Weight 3.9kg Protection class according to DIN EN 60529 IP42
Supplied With:
- EUROSTAR 100 digital
- Chuck key
Details
-
Pack Size:EACH
-
Warranty (Months):24
