Stock Code:
0004444000I

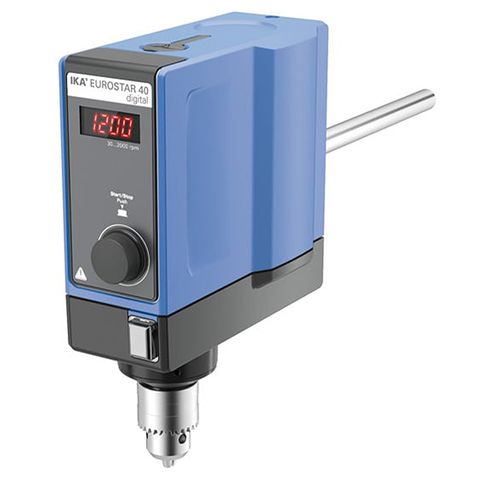

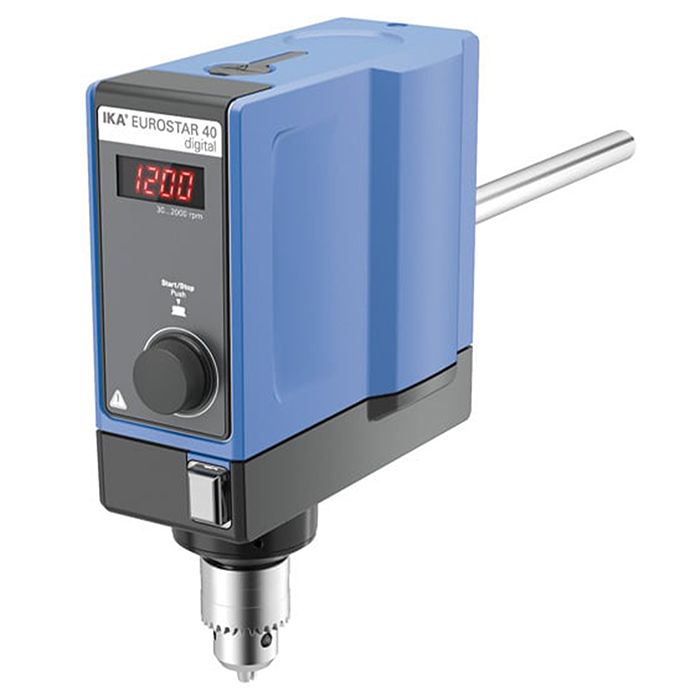

Stirrer Overhead IKA EUROSTAR 40 Digital
Stock:
1 - 9
Downloads
Description
Note: Special Pricing for Stock Only!
Universal laboratory stirrer designed for simple stirring tasks for quantities up to 25 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 - 2000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.
Features and Benefits:
- Digital speed display
- Infinitely adjustable speed
- Push-through agitator shafts
- Overload protection
- Short-term overload operation
- Slim casing
- Quiet operation
- Error code display
Technical Data:
| Stirring Quantity Max (H20) | 25L |
| Motor Rating Input | 118W |
| Motor Rating Output | 84W |
| Motor principle | Brushless DC |
| Speed Display | 7 segment LED |
| Speed Range | 0/30 - 2,000rpm |
| Viscosity Max | 30,000mPas |
| Output Max at Stirring Shaft | 84W |
| Permissible On Time | 100% |
| Torque Max at Stirring Shaft | 40Ncm |
| Speed Adjustment | Stepless |
| Setting Accuracy Speed | +/-1rpm |
| Deviation of Speed Measurement | +/-3rpm |
| Stirring Element Fastening | Chuck |
| Chuck Range Diameter | 0.5 - 10mm |
| Hollow Shaft, inner diameter | 11mm |
| Hollow Shaft (Push-through - when stopped) | Yes |
| Fastening on Stand | Extension arm |
| Extension arm diameter | 16mm |
| Extension arm length | 220mm |
| Speed Control | Electronic |
| Nominal Torque | 0.4Nm |
| Housing material | alu-cast coating / thermoplastic ploymer |
| Dimensions (W x H x D) | 86 x 248 x 208mm |
| Weight | 3.9kg |
| Protection class according to DIN EN 60529 | IP42 |
Supplied With:
- Eurostar 40
- Check key
Details
-
Pack Size:EACH
-
Warranty (Months):24
