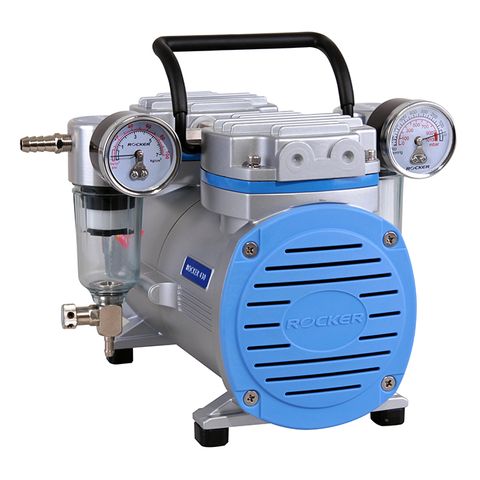

Pump Vacuum Rocker 430

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

Features and Benefits:

Vacuum / Pressure in One Pump

Works as both a vacuum pump and compressor. Equipped with guards and regulators for easy monitoring and adjusting the vacuum level or delivery pressure.

No Air Pollution, Maintenance Free

Driven by piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution

Prote Overflow Protection

Equipped with Prote overflow protection which can prevent a large amount of liquid from being sucked into the pump

Moisture Trap with Filter Cartridge

Equipped with filter cartridge at the air inlet and outlet to filter particle and moisture to prolong the life of pump

Thermal Protection Device

Equipped with overheat protection device that shuts down when overheated and resumes once cooled down, making the pump safe and long lasting

Certifications:

CE certification
IP30 protection
RoHS certification

Applications:

Vacuum filtration
Suspended solid test
Microbial detection
Air sampling
Pressure filtration

Technical Data:

Max Power	125W
Max Current	0.6A
Max Vacuum	145mBar abs.
Max Pressure	80psi
Max Flow Rate	28L/min
Motor Rotation Speed	1,450RPM
Horse Power	1/6HP
Noise Level	52dB
Hose Barb	ID8
Net Weight	5.5kg
Dimensions (LxWxH)	24.7 x 23.5 x 20.4cm
Vacuum Regulator	Yes
Vacuum Gauge	Yes
Overflow Protection	Yes
Overheat Protection	Yes
