Stock Code:
181200-02

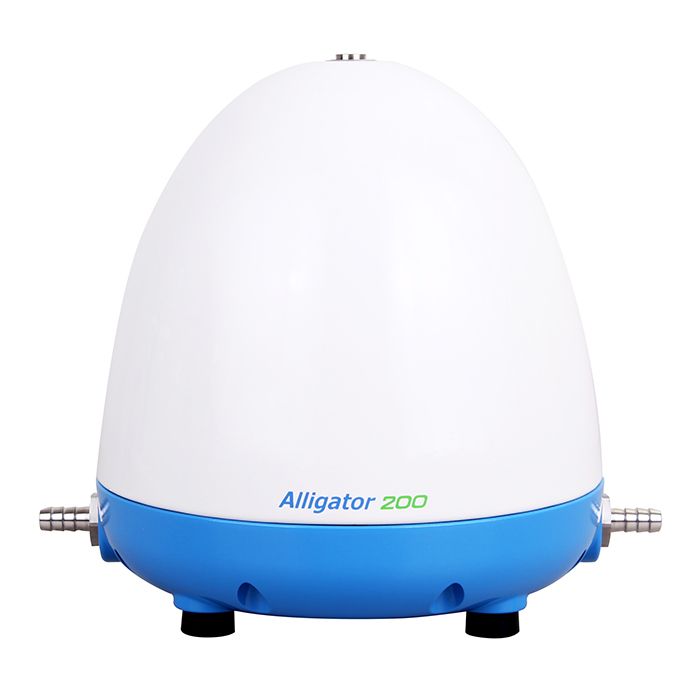

Pump Diaphragm Alligator 200
Stock:
1 - 9
Downloads
Description
Features and Benefits:
- Save 30% Time
- Alligator 200 comes with a built-in liquid pump to transfer the filtered liquid directly to waste. It saves time by simplifying filtration process
- Save 40% Bench Space
- Can be connected directly to filtration system without attaching to waste bottles, which can save up to 40% of bench space
- Touchless Operation, Contamination-free
- Equipped with an infrared sensor switch that activates filtration with a wave of your hand. No touch necessary
- In Compliance with ISO8199
- Complies with ISO8199 regulation
- Clean and Efficient
- Diaphragm pump with no needs for lubricant and oil-mist-free. Its built-in brushless DC motor offers stronger and stabler flow than other equivalent models
Certifications:
- CE certification
- UKCA certification
- IP64 protection
- RoHS certification
Applications:
- Microbiological test by MF Technique
- Suspended solid test
- General filtration
Technical Data:
| Input Voltage | DC24V, 1.8A |
| Max Vacuum | 313mBar abs. |
| Max Liquid Flow Rate | 4.5L/min |
| Motor | 60W Brushless DC Motor |
| Noise Level | 60dB |
| Hose Barb | ID8 |
| Material Contact with Filtrate | SS316, FKM, Silicone, PP, PPS |
| Net Weight | 2.4kg |
| Dimensions (LxWxH) | 24 x 19 x 20cm |
Details
-
Pack Size:EACH
-
Warranty (Months):12
