Stock Code:
0008006300I

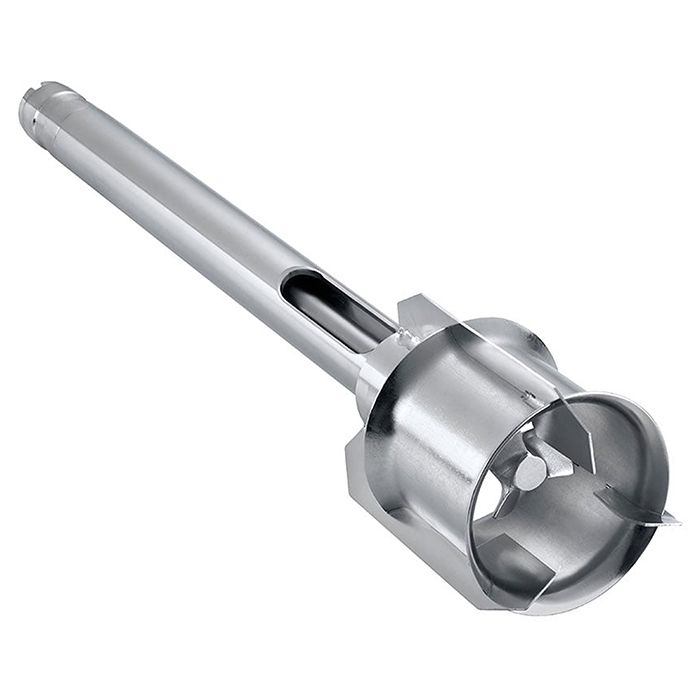

Dispersion Tool T50 S50N-W80SMK - Jet Mixer Head
Stock:
Out of Stock
Description
Description

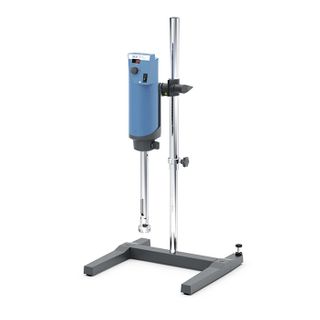

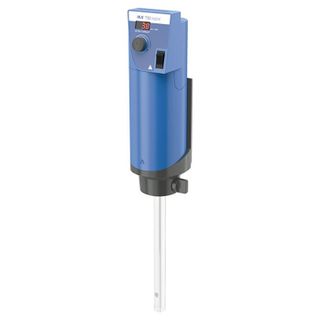

Suitable for dispersing instrument T50.
For shortening mixing and dissolving times. The vertical flow and the high circumferential speed up to 10,000rpm ensure intensive mixing. The head is used for adding gages or liquid, for lump free suspension of difficult to dissolve powders or for dissolving sedimented, already hardened substances.
Technical Data:
| Volume Range (H2O) | 1 - 50L |
| Stator diameter | 80mm |
| Rotor diameter | 34mm |
| Allowable speed max. | 10,000rpm |
| Circumferential speed max | 17.8m/s |
| Immersion depth | 140 - 350mm |
| Material in contact with medium | PTFE, AISI 316L, AISI 304 |
| pH range | 2 - 13 |
| Suitable for solvents | Yes |
| Working temperature range | 180c |
| Sterilisation methods | All methods |
| Weight | 0.521kg |
Details
Details
-
Pack Size:EACH
