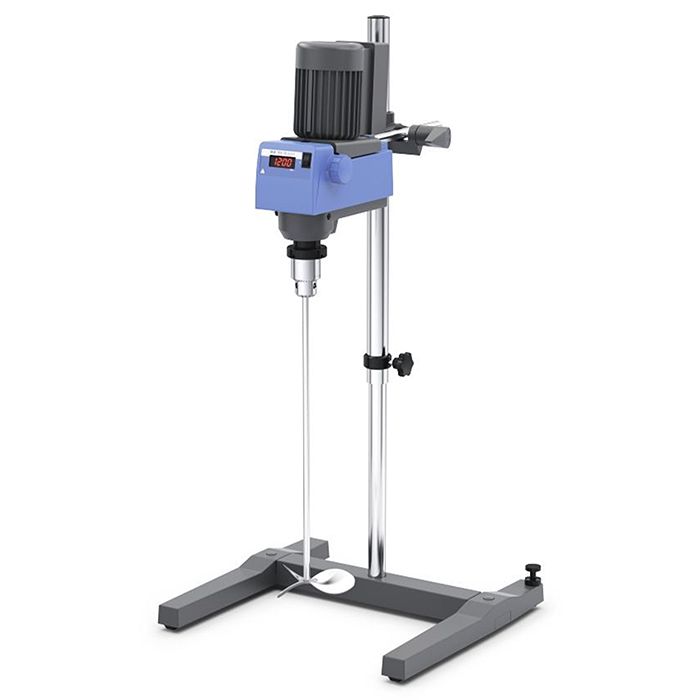

Stirrer Overhead IKA RW28 Package

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

Note: Special Pricing for Stock Only!

Powerful, mechanically controlled laboratory stirrer designed for highly viscous applications for quantities up to 80L (H2O). It is suitable for intensive mixing for use in laboratories and pilot plants. The stirrer comes equipped with a protection for overheating of the motor by means of self-locking temperature limiter. Additionally, to secure bowls, a stirring shaft protection and clamping fixture are optionally available.

Features and Benefits:

Digital display
Infinitely adjustable speed from 60 to 1,400rpm in two speed ranges
Push through agitator shafts (only when stationary)
Overload protection
Error code display
Robust, ergonomic design
Quiet operation
With constant power-drive

Technical Data:

Stirring Quantity Max (H20)	80L
Motor Rating Input	220W
Motor Rating Output	90W
Speed Display	LED
Speed Range	60 - 1,400rpm
Viscosity Max	50,000mPas
Output Max at Stirring Shaft	90W
Permissible On Time	100%
Torque Max at Stirring Shaft	900Ncm
Torque Max at stirring shaft at 60 1/min (overload)	1,144Ncm
Torque Max at stirring shaft at 100rpm	900Ncm
Torque Max at stirring shaft at 1,000rpm	300Ncm
Speed Range I	60 - 400rpm
Speed Range II	240 - 1,400rpm
Speed Adjustment	Stepless
Setting Accuracy Speed	+/-1rpm
Deviation of Speed Measurement	+/-10rpm
Stirring Element Fastening	Chuck
Chuck Range Diameter	1 - 10mm
Hollow Shaft, inner diameter	10.5mm
Hollow Shaft, (push through - when stopped)	Yes
Fastening on Stand	Extension arm
Extension arm diameter	16mm
Extension arm length	145mm
Speed Control	Mechanical
Nominal Torque	9Nm
Housing material	alu-cast coating / thermoplastic ploymer
Noise without element	62.5 dB(A)
Dimensions (W x H x D)	123 x 264 x 252mm
Weight	7.5kg
Protection class according to DIN EN 60529	IP40
