Stock Code:
0001603600I

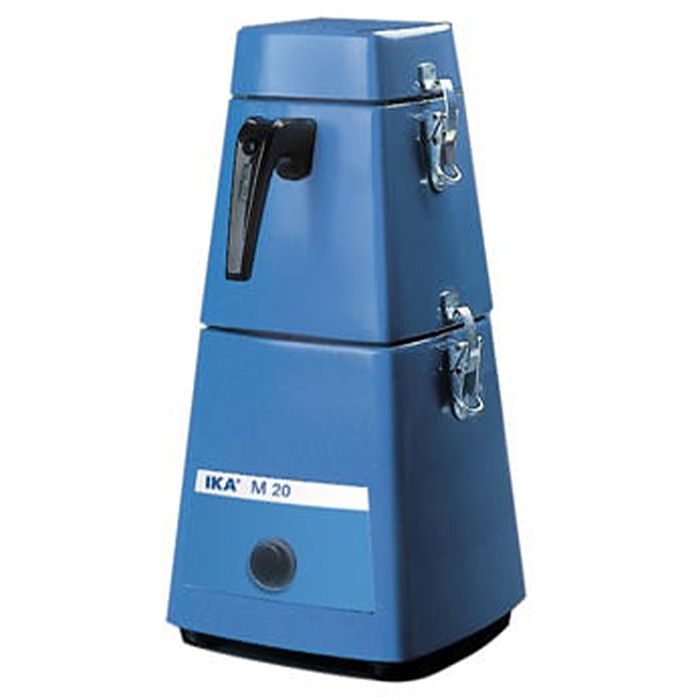

Mill IKA M20
Stock:
Out of Stock
Downloads
Description
Batch mill suitable for dry grinding of hard and brittle substances up to 250 ml with a fixed speed of 20.000 rpm.
Features and Benefits:
- Double-walled grinding chamber can be cooled with water through two hose adapter
- Removable grinding chamber, easy to clean
- Two grinding chambers can be alternately operated using one drive
- M 21 blade incl. with delivery
Technical Data:
| Process Type | Batch |
| Operating Principle | Cutting / Impact |
| Motor Rating Input | 450W |
| Motor Rating Output | 225W |
| Speed Max | 20,000rpm |
| Circumferential Speed Max | 72m/s |
| Useable Volume Max | 250mL |
| Feed Hardness Max | 5 Mohs |
| Feed Grain Size Max | 7mm |
| Material beater/cutter | Stainless Steel 1.4034 |
| Material Milling Chamber | Stainless Steel 1.4301 |
| Milling Chamber, can be cooled with water | Yes |
| Mill Feed can be cooled in milling chamber with dry ice | Yes |
| Dimensions (W x H x D) | 170 x 350 x 170mm |
| Weight | 6.6Kg |
Details
-
Pack Size:EACH
-
Warranty (Months):24
