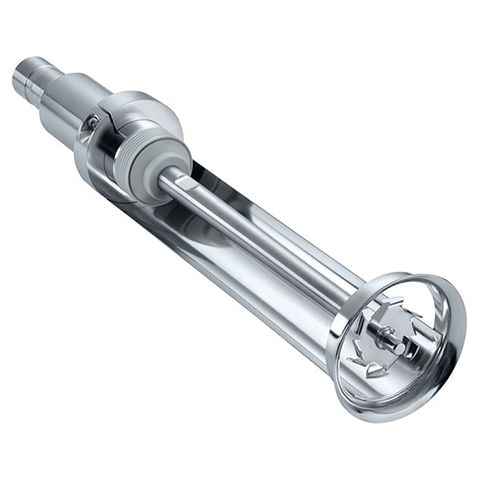

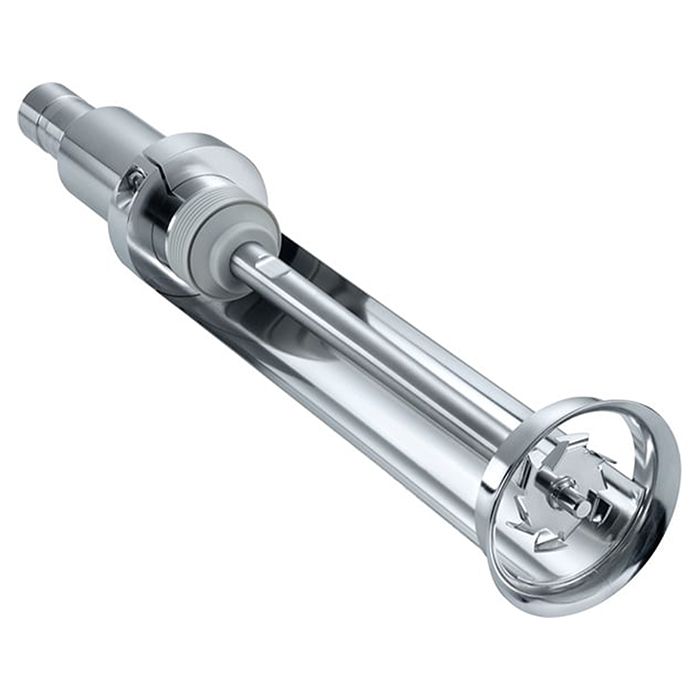

Dispersion Tool T50 R50 Stirring Element - Convert your T50 into a high speed stirrer

Stock:

Out of Stock

Description

With the R 50 stirring shaft, the disperser T 50 digital can be converted into a high speed stirrer. This configuration is recommended for applications that require medium to high shearing forces.

The dissolver disk design of the mixing head coupled with the high speed results in rapid mixing, dissolving, and disagglomeration. A protective cage is fitted around the mixing head and shaft to ensure operational safety. The dissolver head R 1402 is included in scope of delivery.

Alternatively, the mixing head can be changed to a propeller design with the accessory R 1405 in order to facilitate low to medium mixing viscosities under low shear at high speed.

Technical Data:

Volume Range (H2O)	0.25 - 30L
Stator diameter	40mm
Allowable speed max.	10,000rpm
Circumferential speed max	23.6m/s
Immersion depth	50 - 180mm
Shaft length	323mm
Material in contact with medium	AISI 316L, AISI 302
pH range	2 - 13
Suitable for solvents	Yes
Suitable for abrasive substances	Yes
Working temperature range	150c
Dry operations	Yes
Weight	1.25kg
