Stock Code:
201T-F

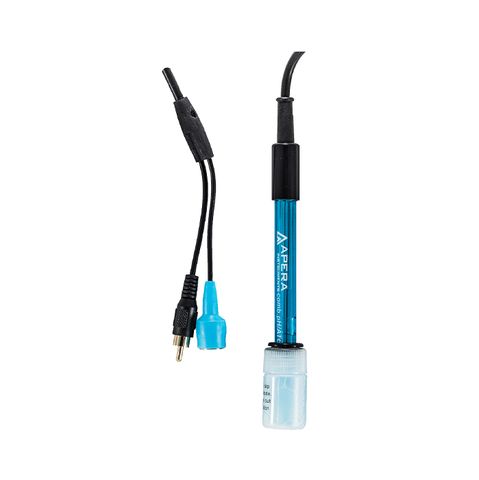

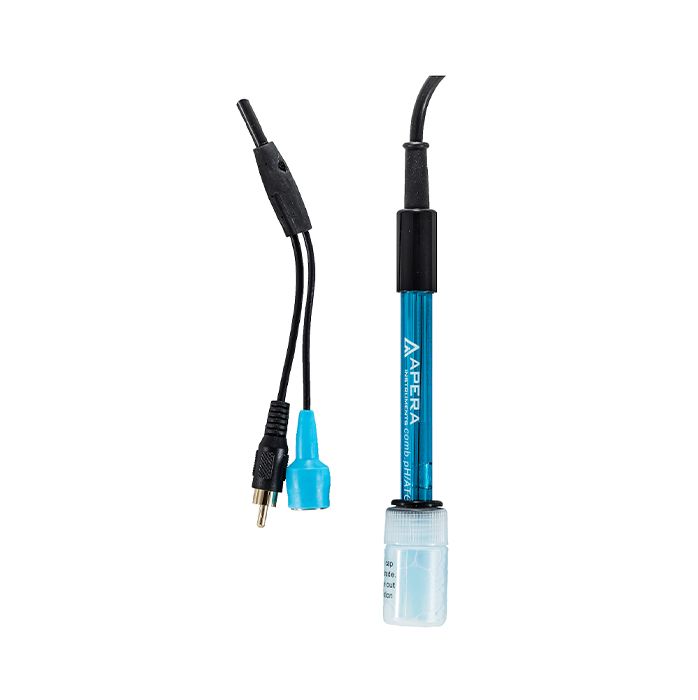

Electrode pH General Purpose ATC

Stock:
1 - 9

Add To Quote

Downloads

Description

  • All-in-one pH/temp Electrode, measuring pH and temperature simultaneously (supports Auto.Temp. Compensation)
  • Proprietary lithium pH glass membrane for quick and stable readings
  • Equipped with a detachable probe storage cap, keeping the sensor hydrated when not in use
  • Gel KCL electrolyte adopted; No need for refilling
  • The 201T-F pH Electrode is made for general water solutions' pH measurement in scientific research,  environmental monitoring, and quality control.
  • The built-in temperature sensor allows automatic temperature compensation Apera's special lithium glass membrane ensures low impedance and stable potentials which helps generate quick and stable pH readings. A unique junction composed of ceramic and fiber filament efficiently improves the problem of junction clogging. A detachable sensor shield is built upon the sensitive glass membrane to protect it from accidental damage.

Technical Data:

Measurement Range0 to 14pH, 0 to 80c
HousingPolycarbonate
JunctionSinglge Ceramic
ReferanceAg/AgCl
ConnectorBNC/RCA
Cable1m
Dimensions12mm Diameter x 160mm
Temperature30KΩ Thermistor

Details

  • Pack Size:
    EACH
