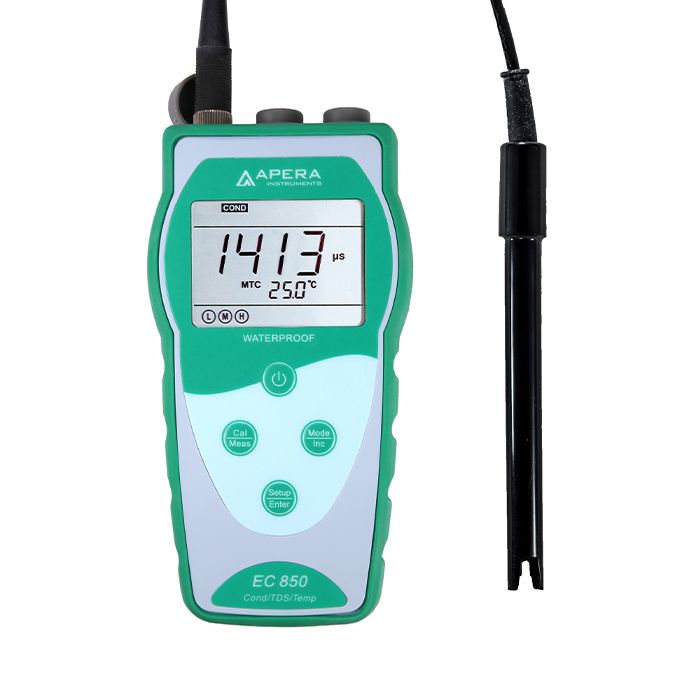

Meter Conductivity / TDS Handheld EC850

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

The EC850 Portable Conductivity Meter Kit is designed for professional conductivity measurement in the field with a variety of practical functions and features in a rugged structure.One-tap to switch among conductivity, TDS.

Easy Calibration - Quick and easy 1- to 3-point auto. conductivity calibration, recognising conductivity standards of 1413 µS/cm, 12.88 mS/cm, 84 µS/cm, and 111.8 mS/cm. The built-in self-diagnosis ensures conductivity calibration will be performed correctly and guides you on how to fix common problems.

Easy Parameter Setup - Cell constant, reference temperature and temperature compensation coefficient are all customisable. TDS conversion factor can be set from 0.40 to 1.00.

Features and Benefits:

Equipped with ATC electrode
Simple operation; easy to use
Rubber cover to protect the meter
Acrylic transparent window, resistant to scratches, waterproof
Calibration guide and self diagnosis function
Complete kit with ready-to-use buffers

Rubber cap to seal and protect the connectors
Foldable holder; use as a benchtop meter
Ergonomic design, suitable for hand operating

Calibration and operating instructions on the back side
IP57 waterproof rating
Stable reading indication with a smiley face

Technical Data (Meter):

Conductivity	Range	0 to 200mS/cm (divided into 5 ranges, automatically switches) 0 to 19.99uS/cm 20 to 199.9uS/cm 200 to 1999uS/cm 2 to 19.99mS/cm 20 to 199.9mS/cm
	Accuracy	+/- 1% F.S / +/- 1 digit
	Resolution	0.01 / 0.1 / 1uS \| 0.01 / 0.1mS
	Calibration	Automatic 1 to 3 Points
	Temp Compensation Coefficient	0 - 9.99% / c
TDS	Range	0.1mg/l to 100g/l
	TDS Coefficient	0.40 - 1.00
Temperature	Range	0 to 100c
	Accuracy	+/- 0.5c
	Resolution	0.1c

Temperature Compensation	Automatic 0 to 50c
IP Rating	IP57 Water Resistant
Automatic Hold	Yes
Stable Reading Indication	Smiley Face Icon
Dimensions and Weight	Meter: 88 x 170 x 33mm \| 333g With Case: 360 x 270 x 76mm \| 1.6kg
Self diagnosis Information	Yes
