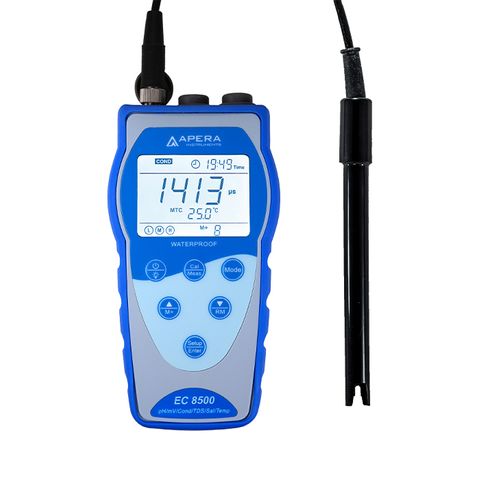

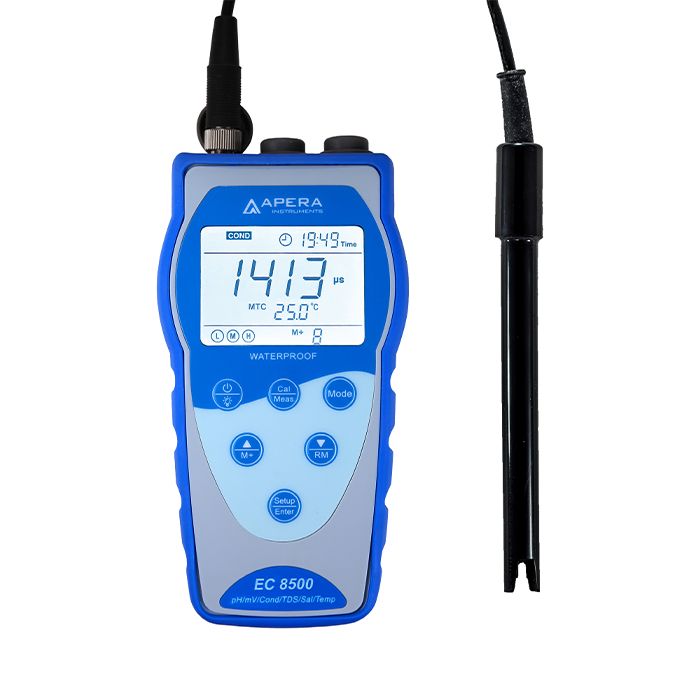

Meter Conductivity / TDS Handheld EC8500
Downloads
Description
The EC8500 Portable Conductivity Meter Kit is designed for lab-grade conductivity measurement in the field with a variety of intelligent functions and features in a rugged structure.
Measuring parameters include conductivity, TDS (ppm), salinity (ppt), and temperature. One-tap switch.
Easy Calibration - Quick and easy 1- to 3-point auto. calibration, recognising conductivity standards of 1413 µS, 12.88 mS, 84 µS, and 111.8 mS.
Last calibration date check available and calibration reminder can be set up.
Complete Parameter Settings - Auto. lock, auto. power off function are available.
Temperature unit, conductivity cell constant, reference temperature, and temperature compensation coefficient are all customisable. TDS conversion factor can be set from 0.40 to 1.00.
Features and Benefits:
- Data logging with USB Output
- Large backlit LCD display
- Equipped with ATC electrode
- Simple operation; easy to use
- Rubber cover to protect the meter
- Acrylic transparent window, resistant to scratches, waterproof
- Calibration guide and self diagnosis function
- Complete kit with ready-to-use buffers
- Rubber cap to seal and protect the connectors
- Foldable holder; use as a benchtop meter
- Ergonomic design, suitable for hand operating
- Calibration and operating instructions on the back side
- IP57 waterproof rating
- Stable reading indication with a smiley face
Technical Data (Meter):
Conductivity | Range | 0 to 200mS/cm (divided into 5 ranges, automatically switches) 0 to 19.99uS/cm 20 to 199.9uS/cm 200 to 1999uS/cm 2 to 19.99mS/cm 20 to 199.9mS/cm |
Accuracy | +/- 1% F.S / +/- 1 digit | |
Resolution | 0.01 / 0.1 / 1uS | 0.01 / 0.1mS | |
Calibration | Automatic 1 to 3 Points | |
Temp Compensation Coefficient | 0 - 9.99% / c | |
TDS | Range | 0.1mg/l to 100g/l |
TDS Coefficient | 0.40 - 1.00 | |
Salinity | Range | 0 to 100ppt |
Temperature | Range | 0 to 100c |
Accuracy | +/- 0.5c | |
Resolution | 0.1c |
Temperature Compensation | Automatic 0 to 50c |
IP Rating | IP57 Water Resistant |
Automatic Hold | Yes |
Stable Reading Indication | Smiley Face Icon |
Dimensions and Weight | Meter: 88 x 170 x 33mm | 333g With Case: 360 x 270 x 76mm | 1.6kg |
Self diagnosis Information | Yes |
Display | LCD white backlit |
Date and Time | Yes |
Data Storage | 500 Sets |
Timing Storage | Yes |
USB Output | Yes |
Calibration Reminding | Yes |
Calibration Time Checking | Yes |
Supplied With:
- EC8500 Meter
- Calibration Solutions (84uS / 1413uS / 12.88mS)
- Electrode
- Screw Driver
- Software flash drive
- USB Cable
- User Manual
- Carry Case
Details
-
Pack Size:EACH
-
Warranty (Months):12
