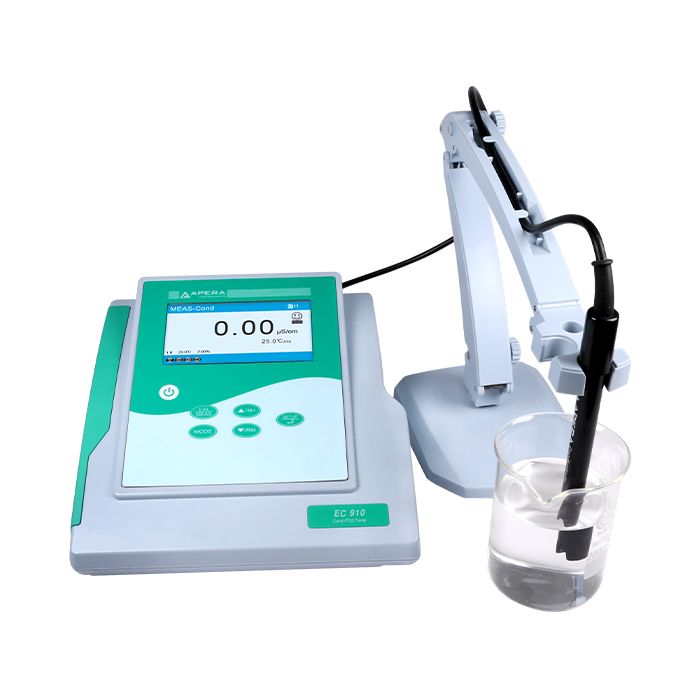

Meter Conductivity / TDS Benchtop EC910

Stock:

1 - 9

Downloads

Features and Benefits:

IP54 waterproof rating
Stable reading indication with a smiley face
Intuitive operating navigation with natural language and graphics
Smiley icon indicates the reading stability; automatic lock mode available
Automatic calibration, automatic temperature compensation, self-diagnosis.
Manual data logger with 200 groups of storage
The 2301T-F BPB (brush-resistant platinum black) conductivity/temp. electrode provides accurate conductivity measurement from 0 to 200mS/cm
1 to 4 points automatic calibration with calibration instruction and self-diagnosis
Single tap to switch from conductivity to TDS and salinity
Automatically recognizes conductivity standard solution (84µS/cm, 1413µS/cm, 12.88mS/cm, 111.8mS/cm).
Standard BNC conductivity connector, RCA connector for a temperature probe, NTC 30KΩ thermistor

Technical Data (Meter):

Conductivity	Range	0~200 mS/cm, divided into five ranges, automatically switch measuring range. (0 to 19.99) μS/cm; (20 to 199.9) μS/cm; (200 to 1999) μS/cm; (2 to 19.99) mS/cm; (20 to 199.9) mS/cm TDS: (0 to 100) g/L; Salinity: (0 to 100) ppt
	Accuracy	+/- 1% F.S. +/- 1digit
	Resolution	0.01/0.1/1μS/cm 0.01/0.1 mS/cm
	Calibration	Automatic 1 to 3 Points
	Temperature Compensation	0 to 50c (Auto or Manual)
Temperature	Range	0 to 100c
	Accuracy	+/- 0.5c
	Resolution	0.1c

IP Rating	IP54 Water and Dust Proof
Self Diagnosis Information	Yes
Calibration Data Checking	Yes
Automatic Hold Function	Yes
Stable Reading Indication	Smily Face Icon
Data Logger	Auto / Manual 100 sets
Data Storage Content	Number, date, time, measurement, temperature, calibration information
Power Supply	DC9V Power Adapter (included)
Dimensions	200 x 220 x 100mm
Weight	950g
