Electrode pH Micro Volume NMR Tubes

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

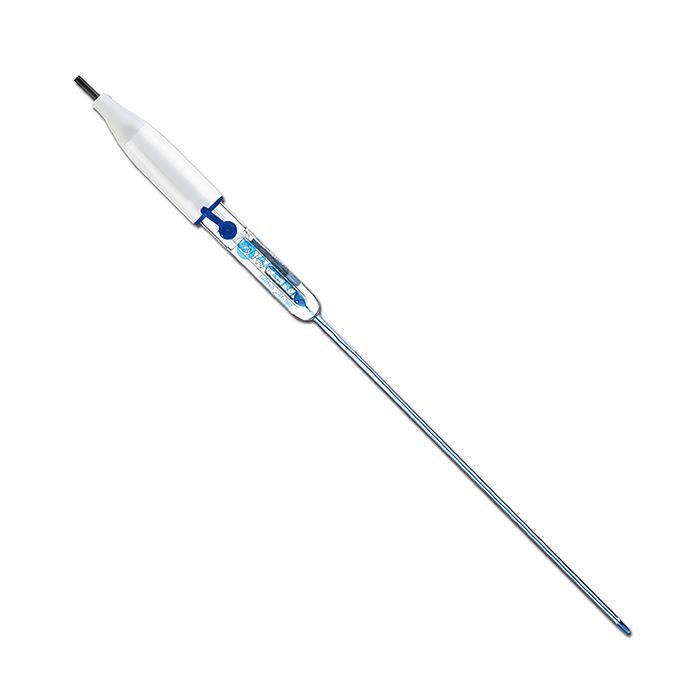

Built with proprietary sensor technology and premium materials from Switzerland, Apera LabSen 241-180 Glass Micro pH Electrode is designed for micro-volume samples in slim containers such as NMR tubes (minimum sample volume: 50 microliters).

LabSen Glass Membrane - LabSen 241-180 pH electrode adopts an ultra-long 180mm micro cylindrical glass membrane (ø3mm), making NMR tube pH measurement easier than ever. And it can be tested at high-temperature up to 212°F. The low-resistance membrane (<450MΩ) helps you quickly get a fully stabilised reading.

Long-Life Reference System - composed of a glass tube, AgCl, and a reference silver wire. The top end of the slim glass tube is stuffed with cotton, which prevents the reaction between AgCl and electrolyte when the temperature changes. It improves the stability of the reference system and extends the electrode's service life.

The electrode uses a standard BNC connector, compatible with any pH meters that use BNC connectors. No temperature sensor is built-in. Users need to have a separate temperature probe (ex: Apera Instruments MP500) to enable ATC or manually input temperature to achieve temperature compensation.

Features and Benefits:

Proprietary pH sensor technology and premium materials from Switzerland
Low-resistance LabSen® 180mm*ø3mm micro cylindrical glass membrane, ideal for NMR tubes and other slim containers (minimum sample volume: 50 microliters)
Long-Life Reference System, improving the stability of the reference and extends the electrode's service life

Technical Data:

Material	Lead Free Glass
Built-in Temperature Compensation Sensor	No
Junction	Ceramic
Reference	Long Life
Electrolyte	3M KCL
Length	180mm
Diameter	3mm
Membrane Shape	Cylindrical
Membran Resistance	<450MΩ
Range	0 to 14pH
Temp Range	0 to 100c
Connector	BNC
Cable	1m
