Electrode pH Micro Volume Samples >0.2mL ATC

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

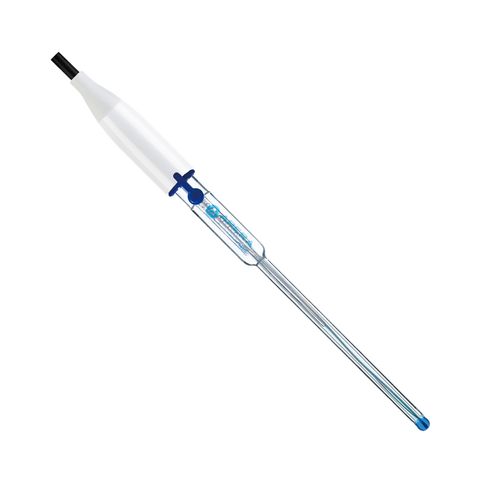

Built with proprietary sensor technology and premium materials from Switzerland, LabSen 243-6 Glass-body Semi-Micro pH/Temp. Electrode is designed for test tubes and small-volume samples (>0.2mL).

LabSen S-type semi-micro glass membrane - 100mm in length and 6mm in diameter, low membrane resistance (<350MΩ), making reliable small-volume (>0.2mL) pH measurement easier than ever, and can be tested in high-temperature samples (up to 212°F).

Long-Life Reference System - composed of a glass tube, AgCl, and a reference silver wire. The top end of the slim glass tube is stuffed with cotton, which prevents the reaction between AgCl and electrolyte when the temperature changes. It improves the stability of the reference system and extends the electrode's service life.

Compatible with all Apera Instruments meters with BNC and RCA connectors such as PH910, PH9500, PH850, PC8500. May NOT work with other brands' meters because the thermistor might be incompatible.

Features and Benefits:

Proprietary pH sensor technology and premium materials from Switzerland
Low-resistance LabSen semi-micro cylindrical glass membrane, suitable for semi-micro samples (>0.2mL)
Smallest test volume is 60µL with the use of the semi-micro container (sold separately)
Long-Life Reference System, improving the stability of the reference and extends the electrode's service life
No more air bubbles inside the glass membrane thanks to the Swiss blue gel electrolyte.
Built-in temperature sensor (30KΩ thermistor)

Technical Data:

Material	Lead Free Glass
Built-in Temperature Compensation Sensor	Yes (30KΩ thermistor)
Junction	Ceramic
Reference	Long Life
Electrolyte	3M KCL
Length	150mm
Diameter	12-6mm
Membrane Shape	Cylindrical
Membran Resistance	<350MΩ
Range	0 to 14pH
Temp Range	0 to 100c
Connector	BNC
Cable	1m
