Electrode pH Wastewater Treatment / Emulsion / Suspension ATC

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

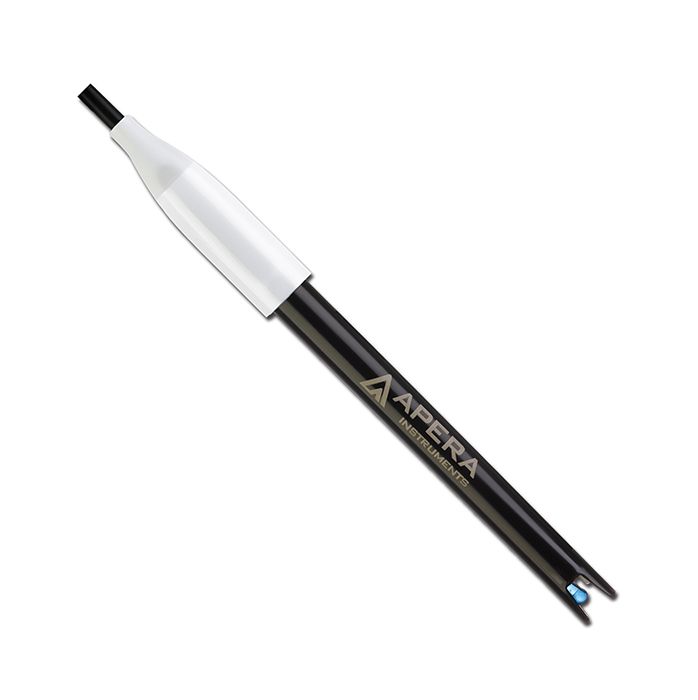

Built with proprietary sensor technology and premium materials from Switzerland, Apera LabSen 333 POM-body pH/Temp. Electrode is designed for testing wastewater, emulsions, suspensions, and other complex solutions that tend to cause junction clogs to regular pH electrodes.

Open junction + Polymer electrolyte - ensures full contact with test samples while eliminating junction clogs. No need for electrolyte refill.

Long-Life Reference System - composed of a glass tube, AgCl, and a reference silver wire. The top end of the slim glass tube is stuffed with cotton, which prevents the reaction between AgCl and electrolyte when the temperature changes. It improves the stability of the reference system and extends the electrode's service life.

Compatible with all Apera Instruments meters with BNC and RCA connectors such as PH910, PH9500, PH850, PC8500. May NOT work with other brands' meters because the thermistor might be incompatible.

Features and Benefits:

Proprietary sensor technology and premium materials from Switzerland
Open junction + Polymer electrolyte, ideal for testing wastewater, emulsions, and suspensions.
Long-Life Reference System, improving the stability of reference system and extends the electrode's service life
The blue gel electrolyte eliminates the chance of any air bubbles inside the sensor
The POM electrode body is highly resistant to corrosion, ideal for use in harsh environments
Built-in temperature sensor for ATC

Technical Data:

Material	POM
Built-in Temperature Compensation Sensor	Yes (30KΩ thermistor)
Junction	Open
Reference	Long Life
Electrolyte	Polymer
Length	120mm
Diameter	12mm
Glass Impedance	<250MΩ
Range	0 to 14pH
Temp Range	0 to 80c
Connector	BNC/RCA
Cable	1m
