Electrode pH Spear and Soil ATC

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

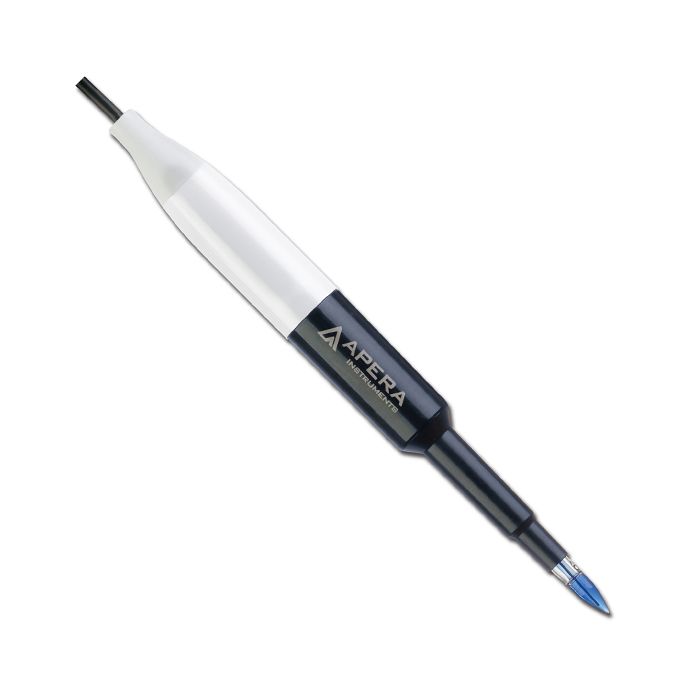

Built with proprietary sensor technology and premium materials from Switzerland, Apera LabSen 553 PVC-body pH/Temp. Electrode is designed for direct soil testing and soil slurry testing.

LabSen S-type spear glass membrane - low resistance and high firmness, rendering fully stabilized readings in 15 to 30 seconds, and is yet 10 times stronger than traditional glass membranes, highly resistant to general impact, eliminating the chance of accidental breakage when inserting into the soil.

Open&Ceramic double-junction with Polymer electrolyte - ensures full contact with test samples while minimizing junction clogs. No need to refill electrolyte.

Long-Life Reference System - composed of a glass tube, AgCl, and a reference silver wire. The top end of the slim glass tube is stuffed with cotton, which prevents the reaction between AgCl and electrolyte when the temperature changes. It improves the stability of reference electrode and extends the service life of the electrode.

Compatible with all Apera Instruments meters with BNC and RCA connectors such as PH910, PH9500, PH850, PC8500. May NOT work with other brands' meters because the thermistor might be incompatible.

Features and Benefits:

Spear sensor designed for direct soil pH test and soil slurry test
LabSen S-type glass membrane, featuring fast response and high firmness
Open&Ceramic double-junction with Polymer electrolyte
Long-Life Reference System - improves the stability of the reference and extends the electrode's service life
Built-in temperature sensor for ATC

Technical Data:

Material	PVC
Built-in Temperature Compensation Sensor	Yes
Junction	Open and Ceramic
Reference	Long Life
Electrolyte	Polymer
Length	115mm
Diameter	15-6mm
Membrane Shape	Spear
Glass Impedance	<250MΩ
Range	0 to 14pH
Connector	BNC/RCA
Cable	1m
