Electrode pH Dairy Products and Food ATC

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

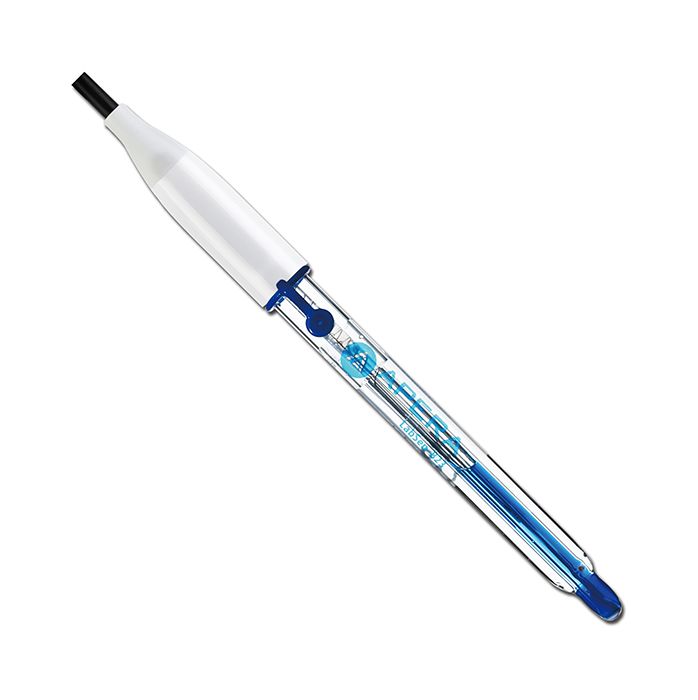

Backed by proprietary sensor technologies and premium materials from Switzerland, Apera LabSen 823 pH/Temp. Electrode is designed for professional pH measurement of milk, cream, yogurt, sauces, and other liquids containing proteins.

Silver Ion Trap Reference System+Protelyte Electrolyte - On top of the Long-Life reference system, a silver ion trap and Protelyte electrolyte is added to prevent junction clogs by proteins, significantly extending the service life of the electrode in protein solutions testing.

LabSen S-type hemispherical glass membrane - low resistance and high firmness, rendering fully stabilised readings in 15 to 30 seconds, and is yet 10 times stronger than traditional glass membranes, highly resistant to general impact, eliminating the chance of accidental breakage.

Swiss patented pH/temperature combination structure - increases the temperature response time by 40% compared to a conventional isolated built-in thermistor, accelerating ATC and the stabilisation process.

Compatible with all Apera Instruments meters with BNC and RCA connectors such as PH910, PH9500, PH850, PC8500. May NOT work with other brands' meters because the thermistor might be incompatible.

Features and Benefits:

Proprietary pH sensor technology and premium materials from Switzerland
Designed for milk, yogurt, cream, sauces, and other liquids containing proteins
The Silver Ion Trap Reference System + Protelyte reference solution, minimising junction clogs by proteins
Built with LabSen S-type hemispherical glass membrane, featuring fast response and high firmness
Swiss patented pH/temperature combination structure for faster ATC
Lead-free glass body

Technical Data:

Material	Lead Free Glass
Built-in Temperature Compensation Sensor	Yes
Junction	Ceramic
Reference	Silver Ion Trap
Electrolyte	Protelyte
Length	120mm
Diameter	12mm
Glass Impedance	<150MΩ
Range	0 to 14pH
Temperature Range	-5 to 100c
Connector	BNC/RCA
Cable	1m
