Electrode pH Strong Acid / Alkaline ATC

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

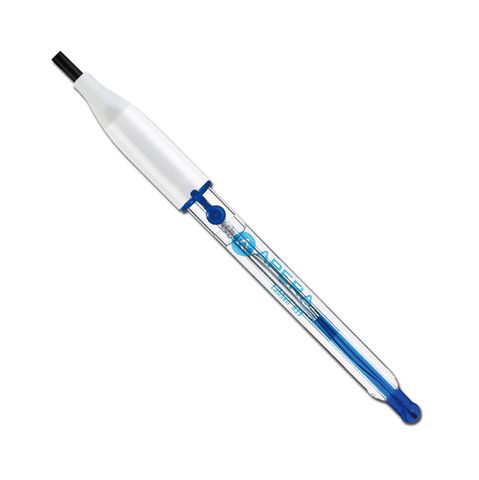

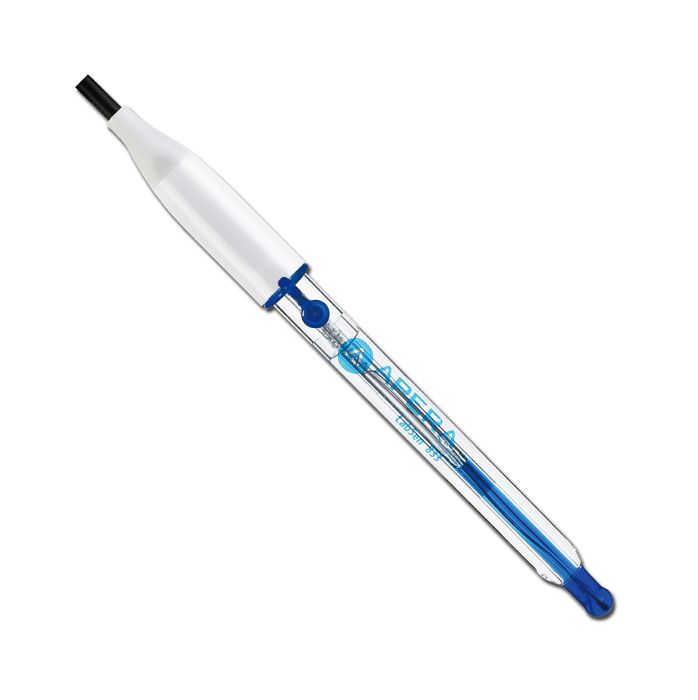

Built with proprietary sensor technology and premium materials from Switzerland, Apera LabSen 833 HF pH/temp. Electrode is designed for professional pH measurement of solutions containing HF (Hydrofluoric) acid, and other strong acidic solutions.

LabSen HF glass membrane –– designed for accurate measurement in strong acid samples, and is resistant to hydrofluoric corrosion, good for 1000 times of measurement (measurement time<1 minute, and HF concentration should be less than 0.1mol/L or 0.2% wt%)

Built tough –– The hemispherical glass membrane is 10 times stronger than traditional glass membranes, and highly resistant to general impact, saving the electrode from accidental damage.

Silver Ion Trap Reference System –– On top of the Long-Life reference system, a silver ion trap is added to further prevent junction clogs.

Compatible with all Apera Instruments meters with BNC and RCA connectors such as PH910, PH9500, PH850, PC8500. May NOT work with other brands' meters because the thermistor might be incompatible.

Features and Benefits:

Proprietary pH sensor technology and premium materials from Switzerland
LabSen HF glass membrane designed for accurate measurement in strong acid samples, and is resistant to hydrofluoric corrosion
Silver Ion Trap Reference System
Built-in temperature sensor for automatic temperature compensation
LabSen's sturdy glass membrane is 10 times stronger than traditional glass membranes
The blue gel electrolyte eliminates the chance of any air bubbles inside the sensor

Technical Data:

Material	Lead Free Glass
Built-in Temperature Compensation Sensor	Yes
Junction	Ceramic
Reference	Silver Ion Trap
Electrolyte	3M KCL
Length	120mm
Diameter	12mm
Membrane Shape	Half Ball
Glass Impedance	<400MΩ
Range	0 to 11pH
Temperature Range	0 to 100c
Connector	BNC/RCA
Cable	1m
