Electrode pH Viscous Solutions ATC

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

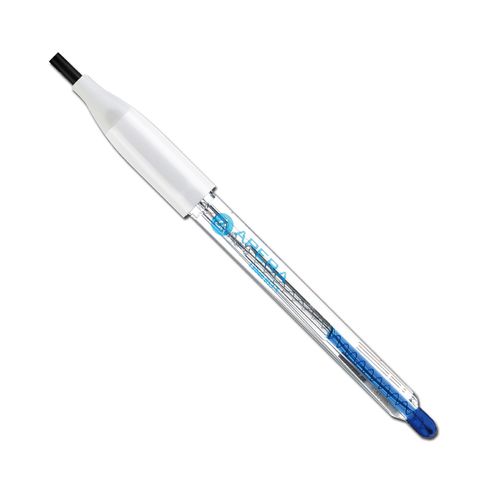

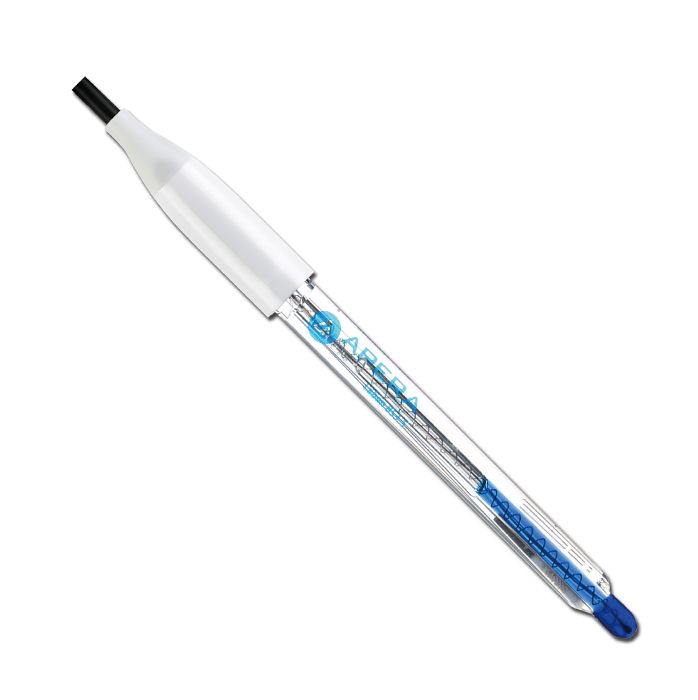

LabSen 853-S pH/temp. electrode is designed for high-accuracy pH measurement of highly viscous samples such as coatings, syrups, resin, glue, and etc.

The pre-pressurised structure allows the electrolyte to stably flow out even in highly viscous samples so as to ensure reliable measurements.

LabSen S-type glass membrane - fast response and is 10 times stronger than traditional glass membranes, saving the electrode from accidental damage.

Compatible with all Apera Instruments meters with BNC and RCA connectors such as PH910, PH9500, PH850, PC8500. May NOT work with other brands' meters because the thermistor might be incompatible.

Features and Benefits:

Proprietary sensor technology and premium materials from Switzerland
The low-impedance S membrane ensures a fast response and is yet impact resistant.
Pre-pressurized reference system for smooth electrolyte flow
Built-in temperature sensor for ATC
Silver Ion Trap Reference System ensures a stable reference potential and long service life.
Lead-free glass body

Technical Data:

Material	Lead Free Glass
Built-in Temperature Compensation Sensor	Yes
Junction	Pre-pressurised ceramic
Reference	Silver Ion Trap
Electrolyte	Gel KCL
Length	120mm
Diameter	12mm
Membrane Shape	Hemispherical
Glass Impedance	<150MΩ
Range	0 to 14pH
Temperature Range	-5 to 100c
Connector	BNC
Cable	1m
