Electrode pH High Temp / Caustic Solutions ATC

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

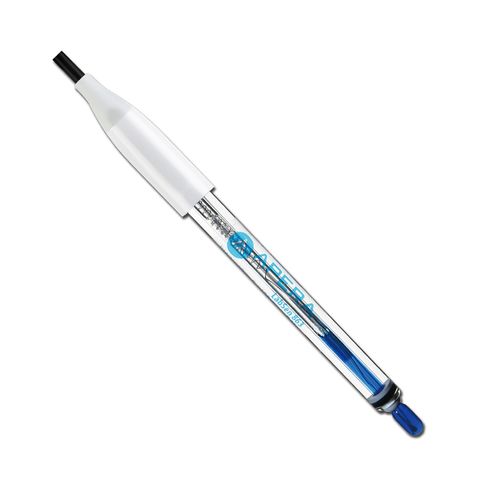

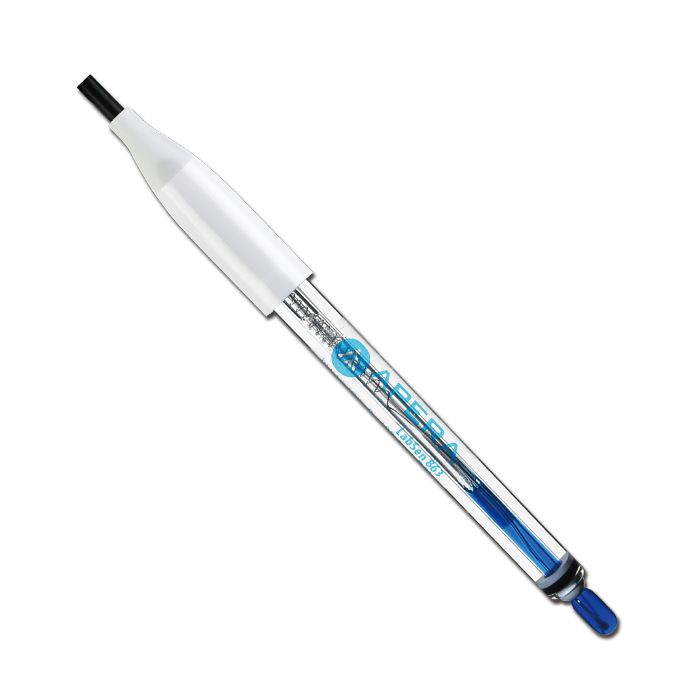

LabSen 863 pH/temp. electrode is designed for high-accuracy pH measurement of corrosive and high-temp. solutions such as electroplating solutions.

The PHY membrane is the most robust membrane of the LabSen series, highly resistant to chemical corrosions and high temperature up to 130˚C, maximising the reliability and service life of the electrode in complex and high-temp. solution testing.

Compatible with all Apera Instruments meters with BNC and RCA connectors such as PH910, PH9500, PH850, PC8500. May NOT work with other brands' meters because the thermistor might be incompatible.

Features and Benefits:

PHY glass membrane made for high-temp. and caustic solutions
The PTFE ring junction prevents junction clogs from complex chemicals.
Blue gel inner solution - does not flow and will not generate air bubbles.
Suitable for high-temperature solutions (up to 130˚C)
Built-in temperature sensor for automatic temperature compensation
Lead-free glass body

Technical Data:

Material	Lead Free Glass
Built-in Temperature Compensation Sensor	Yes
Junction	PTFE
Reference	Silver Ion Trap
Electrolyte	Gel KCL
Length	120mm
Diameter	12mm
Membrane Shape	Cylindrical
Glass Impedance	<500MΩ
Range	1 to 13pH
Temperature Range	0 to 130c
Connector	BNC/RCA
Cable	1m
