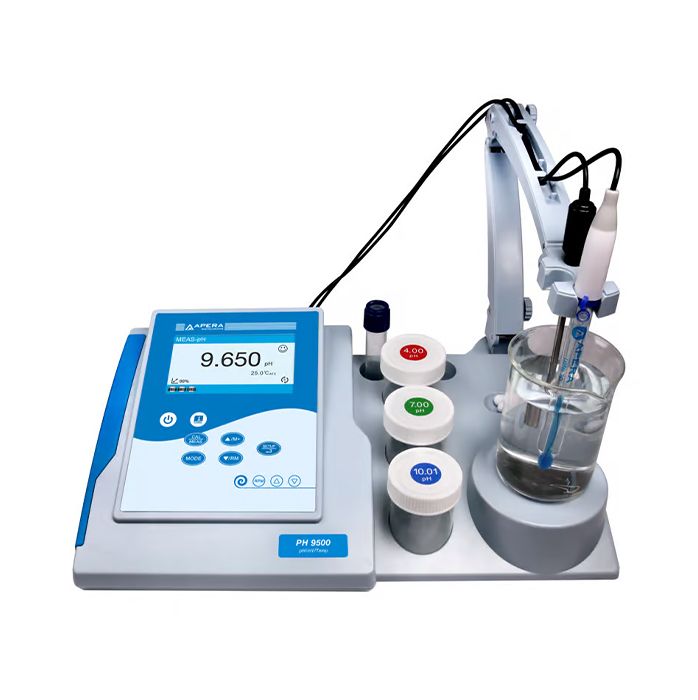

Meter pH Benchtop with Test Bench PH9500

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

The PH9500 is a research-grade benchtop pH meter that is designed for laboratory professionals, offering long-term reliability in high-accuracy pH/mV(ORP) measurement.

The meter is rich in features including comprehensive GLP data logging, data export to printer or PC, calibration password protection, buffer organisers, self-diagnosis, i-Guidance, and many more while retaining simplicity in use.

Instrument Features:

An advanced yet intuitive user interface with plain language and graphic screen prompts that does not require tedious manual reading or training to operate.
Manual/Auto. data logger with 1000 groups of storage with comprehensive GLP data input including electrode ID, user ID, sample ID, company name, and calibration password for data protection. USB Data export to PC for further analysis or to a pin-type mini printer for instant report (sold separately).
i-Guide is always available through the “i” key. Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration.
Comes with TestBench that incorporates a flexible electrode holder, an intelligent magnetic stirrer, and buffer organisers altogether, streamlining the process of measurement and calibration.

pH Features:

Supplied with Swiss LabSen® 211 pH combination electrode featured with a the special low-impedance glass membrane long-life reference system, along with the MP500 temperature probe, achieving highest possible accurate measurements (0.003 pH) in the fastest manner with a 0-100˚C automatic temperature compensation (ATC). LabSen 211 is designed for general water solutions and compatible with TRIS buffers.
1 to 5 points automatic calibration with a choice of 5 pH standard buffers (1.68, 4.00, 7.00, 10.01, 12.45) or user-define standards. Automatically displays electrode slope.
Step-by-step calibration guide with calibration self-diagnosis
Standard BNC pH connector, RCA connector for a temperature probe, NTC 30KΩ thermistor. Compatible with all Swiss LabSen series pH electrodes for samples in specialised applications.

Technical Data (Meter):

pH	Range	-2 to 20pH
	Accuracy	+/-0.002pH +/- 1digit
	Resolution	0.1 / 0.01/ 0.001pH
	Calibration	Automatic 1 to 5 Points
mV	Range	+/-2,000mV
	Resolution	0.1/1mV
	Accuracy	+/-0.0.3% FS +/- 1 digit
Temperature	Range	-10 to 110c
	Accuracy	+/- 0.5c
	Resolution	0.1c

Display	TFT Colour Display
Stable Measuring Indication	Smily Face Icon
Automatic Hold	Yes
Calibration Reimder	Yes
Calibration Data Check	Yes
Measuring Alarm	Yes
Stability Setting	Low / Middle / High
Temp Compensation	0 to 100c Automatic or Manual
Date and Time	Yes
Data Storage	1,000 Sets
Timing Storage	Yes
Self Diagnosis Information	Yes
USB Output	Yes
GLP Print	Yes (printer optional)
External Keyboard	Yes
pH Electrode Connector	BNC
Electrode Holder	Yes (with built in stirrer)
IP Rating	IP54 Water and Dust Proof
Power	DC9V
Dimensions and Weight	360 x 165 x 400mm
Weight	1.25kg
