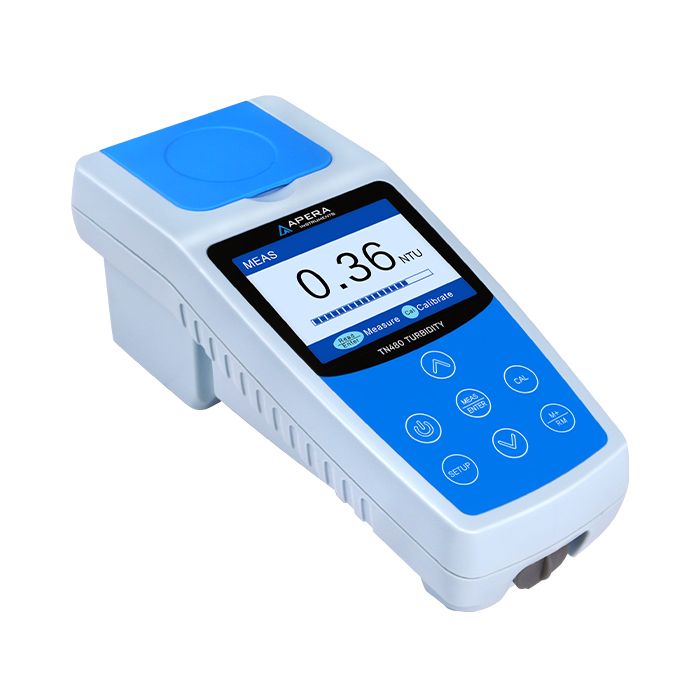

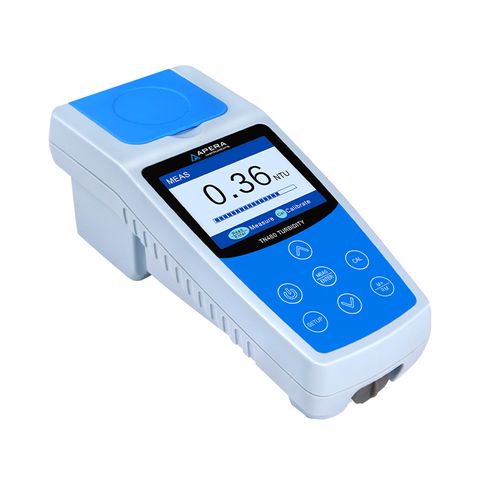

Meter Turbidity Infrared TN480

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

The TN480 uses an infrared light source and 90° scattering method, which is compliant with the ISO 7027 method. The instrument is designed for water quality professionals, offering long-term reliability in high-accuracy turbidity measurement with an intuitive operating system, simple calibration, and GLP data management.

The infrared light source is especially ideal for testing solutions with color.
TruRead measurement mode automatically takes multiple consecutive readings, and calculate their average, minimum and maximum value, as well as displaying each set of data in a brief test report. TruRead is a much better way to determine the true turbidity of your samples, rather than relying on just one reading. It's especially suitable for sample solutions with rapid settling and continuous measurement changes.
The kit comes with AMCO high-molecular polymer turbidity standard solutions (0, 20, 100, 400, 800 NTU), which are EPA approved primary standards that are safe, non-toxic and disposable, and have a guaranteed one-year shelf life. It is NIST traceable to particle size/distribution and optical density, and its inherent stability means it does not settle from suspension. Store the standards at room temperature. They must not be frozen.
Zero turbidity error reminder: the instrument has zero-point calibration and zero-point error reminder to ensure high accuracy for low-turbidity solutions.
Large TFT color screen with simple operation guide, supporting English, Spanish, and Chinese.
200 sets of data storage with USB data output to PC (Windows-based), real-time clock display, calibration date check, automatic power off, and low battery reminder.
Everything comes in a rugged carrying case, including AMCO calibration solutions (0, 20, 100, 400, 800 NTU), 6 pieces of sample vials, USB cable, silicone oil, a microfiber wipe, PC-Link software flash drive, and user manual.

Technical Data:

Measurement Method	90 Degree Measurement, ISO 7027 Compliant
Light Source	Infrared
Measuring Range	0 to 1,000 NTU (automatic range switch) 0.01 to 19.99 NTU 20 to 99.9 NTU 100 to 1,000 NTU
Accuracy	≤ ±2% of reading+ stray light
Repeatability	≤ ± 1% of reading or 0.02 NTU(FNU) (the greater of the two)
Resolution	0.01/0.1/1 NTU
Stray Light	≤0.02 NTU
Calibration Standard	AMCO Polymer or Formazin Solution：0, 20, 100, 400 and 800NTU
Detector	Silicon photovoltaic
Measuring Mode	Normal measurement and TruRead measurement
Data Storage	200 groups
Data Output	USB to PC
Calibration Record	Calibration date and time
Display	TFT color screen
Sample Vial	Φ25×60 mm，high borosilicate glass with lid
Sample Vial Volume	18 ml
Power Supply	3-AAA alkaline batteries
Working Condition	Temperature: 0 to 50°c Relative humidity：0 to 90% at 30c, 80% at 40c, 0 to 70% at 50c
Instrument Sealing Grade	IP67
Dimensions and Weight	Unit: 90 x 203 x 80mm \| 385g With Case: 310 x 295 x 110mm \| 1.5kg

AMCO Polymer Standard Calibration Solutions:

Approved by US EPA and ASTM, AMCO high molecular polymer turbidity standard solutions are the best alternatives to Formazin standards in terms of shelf life, ease of use and safety concerns.

	Formazin Solution	AMCO Polymer Solutions
Toxicity	Highly toxic, PPE is necessary when handling	Non-toxic
Operation	Requires diluting, complicated operation.	No diluting needed, use directly
Shelf Life	<2 NTU: 1 hour; 2 – 20 NTU: 12 – 24 hours; 20 - 400NTU: 1 month	1 year
Storage Condition	Avoid sunlight at low temperature	Avoid sunlight at room temp.
Convenience	Easy to settle, requires flipping and mixing	Very stable, can be used directly
Traceability	Non-traceable	NIST traceable
