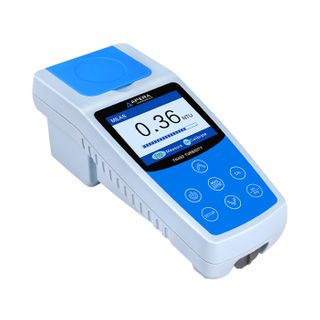

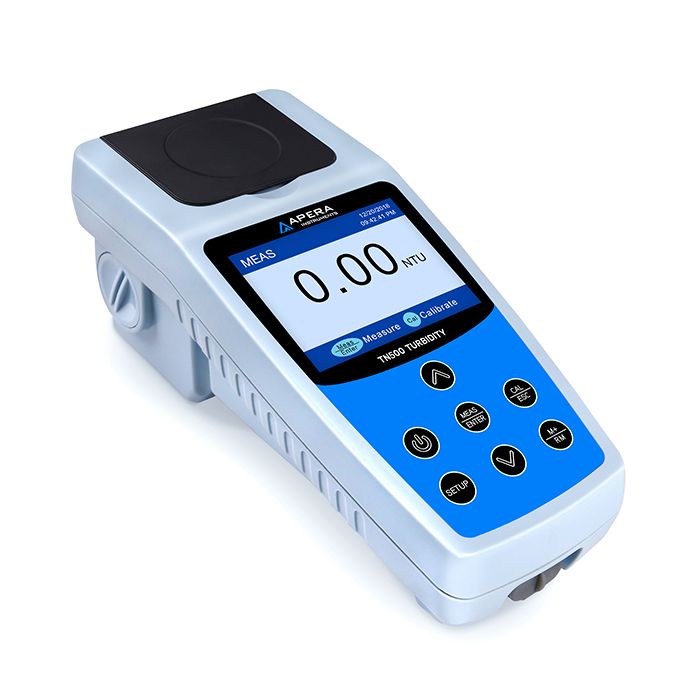

Meter Turbidity White Light TN500

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

The TN500 uses a tungsten filament lamp as the light source and 90° scattering method, which is compliant with the U.S EPA 180.1 method for the determination of turbidity in drinking, ground, surface, and saline waters, domestic and industrial wastes. The instrument is designed for water quality professionals, offering long-term reliability in high-accuracy turbidity measurement with an intuitive operation system, simple calibration, and GLP data management.

Technical Data:

Measurement Method	90 Degree Measurement, US EPA180.1 Compliant
Light Source	Tungsten Filament Lamp
Measuring Range	0 to 1,000 NTU (automatic range switch) 0.01 to 19.99 NTU 20 to 99.9 NTU 100 to 1,000 NTU
Accuracy	≤ ±2% of reading+ stray light
Repeatability	≤ ± 1% of reading or 0.02 NTU(FNU) (the greater of the two)
Resolution	0.01/0.1/1 NTU
Stray Light	≤0.02 NTU
Calibration Standard	AMCO Polymer or Formazin Solution：0, 20, 100, 400 and 800NTU
Detector	Silicon photovoltaic
Measuring Mode	Normal measurement and TruRead measurement
Data Storage	200 groups
Data Output	USB to PC
Calibration Record	Calibration date and time
Display	TFT color screen

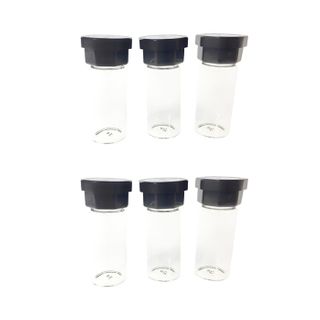

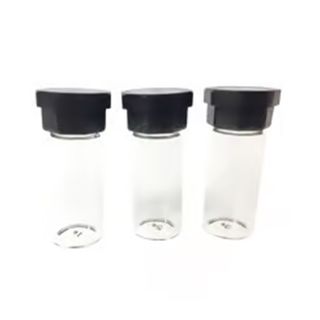

Sample Vial	Φ25×60 mm，high borosilicate glass with lid
Sample Vial Volume	18 ml
Power Supply	3.7V Rechargeable lithium battery
Working Condition	Temperature: 0 to 50°c Relative humidity：0 to 90% at 30c, 80% at 40c, 0 to 70% at 50c
Instrument Sealing Grade	IP67
Dimensions and Weight	Unit: 90 x 203 x 80mm \| 385g With Case: 310 x 295 x 110mm \| 1.5kg

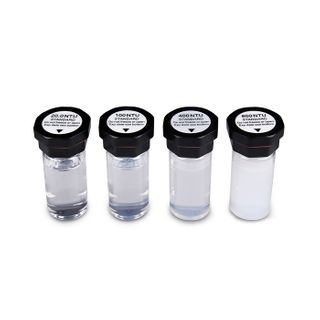

AMCO Polymer Standard Calibration Solutions:

Approved by US EPA and ASTM, AMCO high molecular polymer turbidity standard solutions are the best alternatives to Formazin standards in terms of shelf life, ease of use and safety concerns.

	Formazin Solution	AMCO Polymer Solutions
Toxicity	Highly toxic, PPE is necessary when handling	Non-toxic
Operation	Requires diluting, complicated operation.	No diluting needed, use directly
Shelf Life	<2 NTU: 1 hour; 2 – 20 NTU: 12 – 24 hours; 20 - 400NTU: 1 month	1 year
Storage Condition	Avoid sunlight at low temperature	Avoid sunlight at room temp.
Convenience	Easy to settle, requires flipping and mixing	Very stable, can be used directly
Traceability	Non-traceable	NIST traceable
