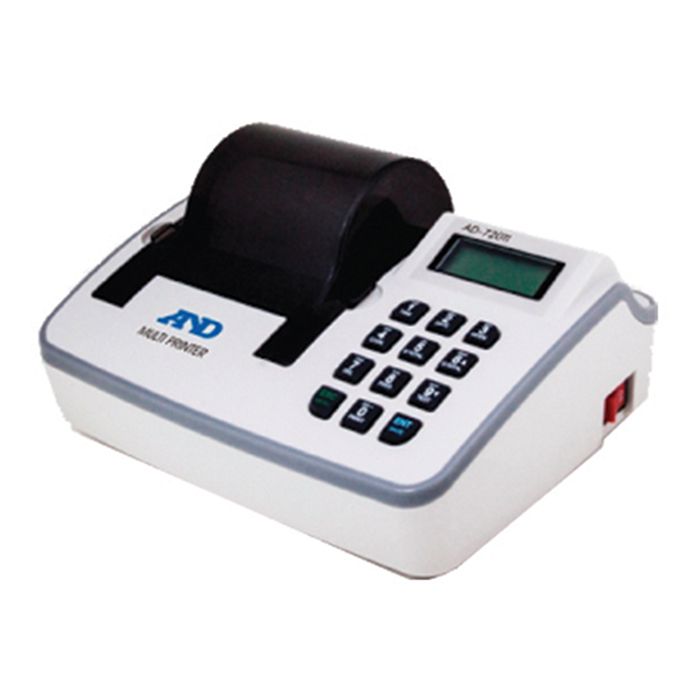

Printer Dot Matrix for Balances A&D

Stock:

Out of Stock

Downloads

Features and Benefits:

Compact and lightweight
Keyboard data entry
Highly reliable and durable
Compatible with all A&D scales and balances, and a wide range of other electronic balances, indicators
Statistical calculation and clock functions
Prints by keys on balances, indicators, etc. or the printer key on AD8127, Automatic Printing Mode and Interval Printing Mode (within the range of time interval from 5 seconds to 60 minutes printing)
Simple printer configuration
Provides External INPUT signal to print by pressing an external switch
Self-diagnostic function

Technical Data:

Printing Method	8 Pin Serial Impact dot matrix system
Number of dot per line	240 dot
Printing speed	1.6 line/sec
Columns number	English standard 30 Columns
Font size	English: 8 x 14
LCD	8 x 2 Line (Back Light Function)
Printing function	Statistics arithmetic function, watch function
Cartridge	EPSON ERC-09
Printer Paper	57mm (W) x 60mm (Dia) Roll Paper
Printing width	48mm
Interface	Serial RS232C, Current Loop RS-485 (Option) 2 External Input Port
Power Source	240V
Dimensions (W x D x H)	174.3mm x 141.3mm x 86.9mm
