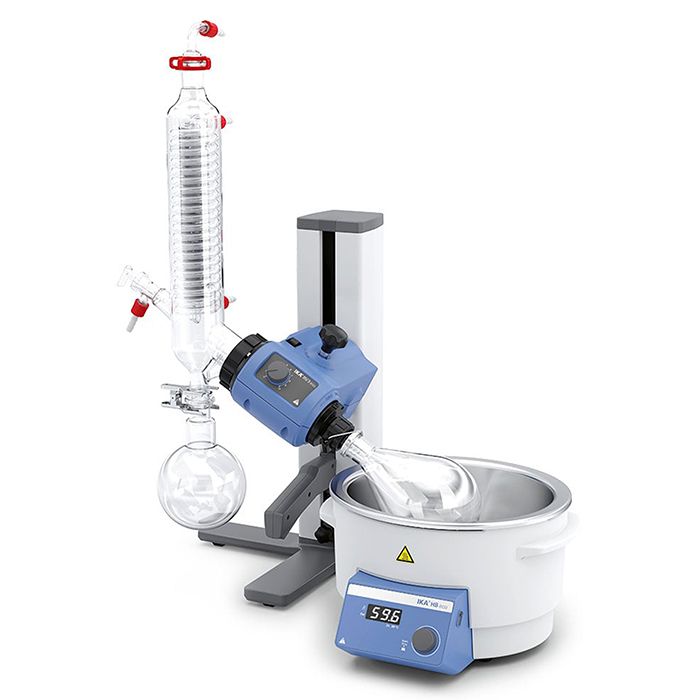

Evaporator Rotary IKA RV 3 V

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

The rotary evaporator RV 3 is the ideal entry-level model of the IKA rotary evaporator portfolio. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Thanks to specially designed glass guides, the condenser makes extremely efficient use of the 1600 cm² cooling surface.

Features and Benefits:

Heating bath with 4L volume for up to 99c
Water heating bath with digital temperature display and carrying handles
Mechanical lift end-point safety stop
Locking mechanism: red indicator shows unlocked position of the vapor tube
Manual lift for precise positioning of the glassware
Adjustable immersion angle
Single-handed manual lift handling, suitable for left and right-handed operators
Stepless speed setting with dial control and speed display
Speed range: 20 - 300rpm
Low device voltage (24V) for user safety
Flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
High-efficiency condenser with 1600cm cooling surface - low space requirements
Compatible with entire range of IKA RV10 glassware

Technical Data:

Type of cooling	vertical
Cooling surface	1600cm
Motor principle	DC
Speed range	20 - 300rpm
Speed tolerance set rotation speed <100rpm	+/-1rpm
Speed tolerance set rotation speed >100rpm	+/-1%
Lift	Manual
Stroke	150mm
Heating temperature range	room temp - 99c
Dimensions (W x H x D)	440 x 530 x 330mm
Weight	28.3kg
Protection class	IP20
