Evaporator Rotary IKA RV 8 V

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

Note: Special Pricing for Stock Only!

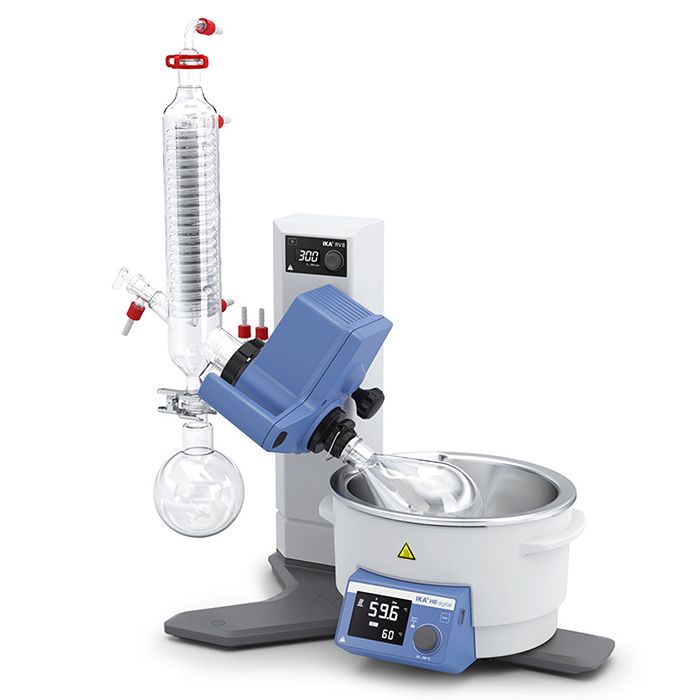

The rotary evaporator RV 8 is the manual basic model in the family of IKA Rotation Evaporators. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Thanks to specially designed glass guides, the vertical condenser makes extremely efficient use of the 1600 cm² cooling surface. Digital displays for speed and heating bath temperature enable optimum control of all distillation processes.

Features and Benefits:

Heating bath with 4L volume
Integrated safety lift-out function in case of power failure
Package includes Woulff bottle
Water/oil heating bath with carrying handles
Locking button for fixing heating bath temperature
Clearly legible, glass-covered, black and white display panel
Locking mechanism: red indicator shows unlocked position of the vapor tube
Manual lift for precise positioning of the glassware
Adjustable immersion angle
Single-handed manual lift handling, suitable for left and right-handed operators
Low device voltage (24V)
Flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
High-efficiency condenser with 1600cm cooling surface - low space requirements
Compatible with the entire range of IKA RV10 Glassware

Technical Data:

Type of cooling	vertical
Cooling surface	1,600cm
Motor principle	DC
Speed range	5 - 300rpm
Speed tolerance set rotation speed <100rpm	+/-1rpm
Speed tolerance set rotation speed >100rpm	+/-1%
Lift	Manual
Stroke	120mm
Heating temperature range	room temp - 180c
Dimensions (W x H x D)	510 x 490 x 345mm
Weight	25.76kg
Protection class	IP20
