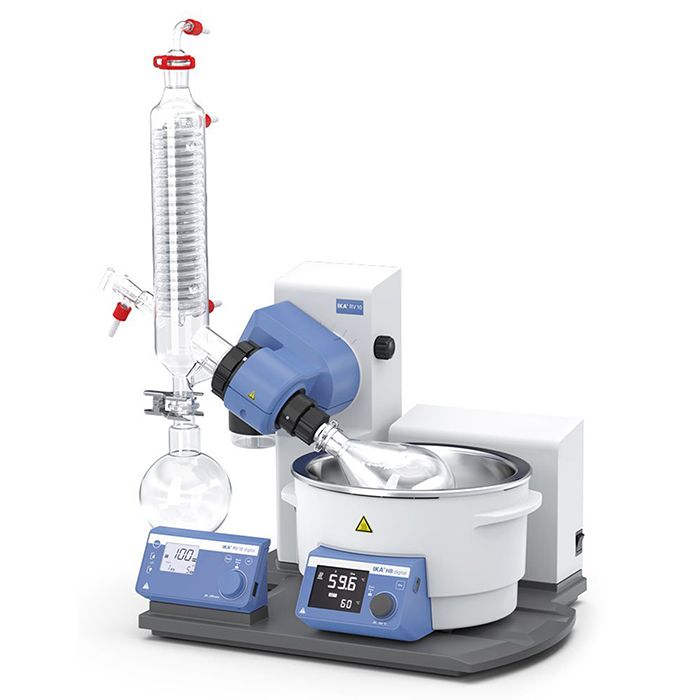

Evaporator Rotary IKA RV10 digital V-C

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

The RV 10 digital represents the continual enhancement of the IKA RV 10 rotary evaporator line. The unit comes with an universal heating bath, vertical glassware, state-of-the-art safety features and digital connectivity. The RV 10 digital is a robust and reliable lab companion. Its optimized bath volume allows for fast heat-up times. The condenser unit has special designed glass tubes that utilize the 1600 cm² surface extremely efficient.

That’s why the RV 10 digital delivers reliable and reproducible process results that are usually reserved for more costly systems. Additional features such as smooth start, left-right interval or timer function capability support the user in their daily lab work. Another important aspect of the RV 10 digital are the sophisticated safety features.

The motorized lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. Safety temperature circuits can be set individually. Dry-run protection, adjustable lower end stop and lock function of bath setting complete the line of safety features. Furthermore, IKA offers a choice of coated glassware for increased safety needs. The RS 232 interface allows for remote control via IKAs “labworldsoft”. The Heating bath is controlled via the IR interface from the main unit.

Features and Benefits:

Heating bath with 4L volume
Universal water/oil heating bath
Vertical glassware
Motorised lift with "safety-stop" function
RS232 and IR interface
Optimised heating bath volume for fast heat-up
Highly efficient 1,600cm condenser unit
Rugged design
Ergonomically placed handles on heating bath
Smooth start
Left-right interval
Timer function
Dry-run protection
Safety temperature circuits
Lower-end stop
Push-off mechanism to loosen tight fitted glassware
Easy and safe operation due to ergonomical design of the user interface

Technical Data:

Type of cooling	vertical
Cooling surface	1,600cm
Motor principle	DC
Speed range	5 - 280rpm
Reversible direction of rotation	Yes
Lift	Motor
Stroke	140mm
Heating temperature range	room temp - 180c
Heat output	1,350W
Set temperature resolution	+/-1K
Filling volume max.	4L
Timer	Yes
Dimensions (W x H x D)	500 x 430 x 440mm
Weight	32.67kg
Protection class	IP20
RS232 Interface	Yes
