Mill IKA Tube Mill 100 Control

Stock:

1 - 9

Add to Favourites

Downloads

Description

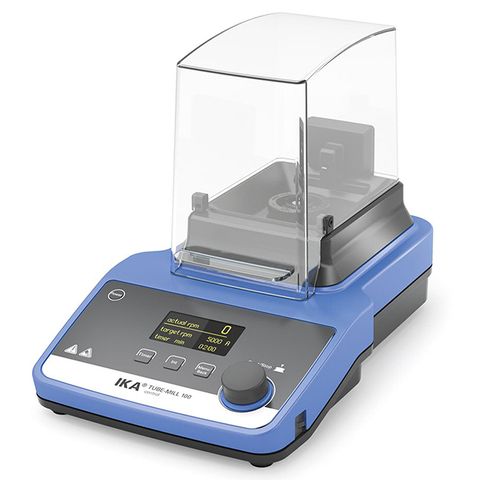

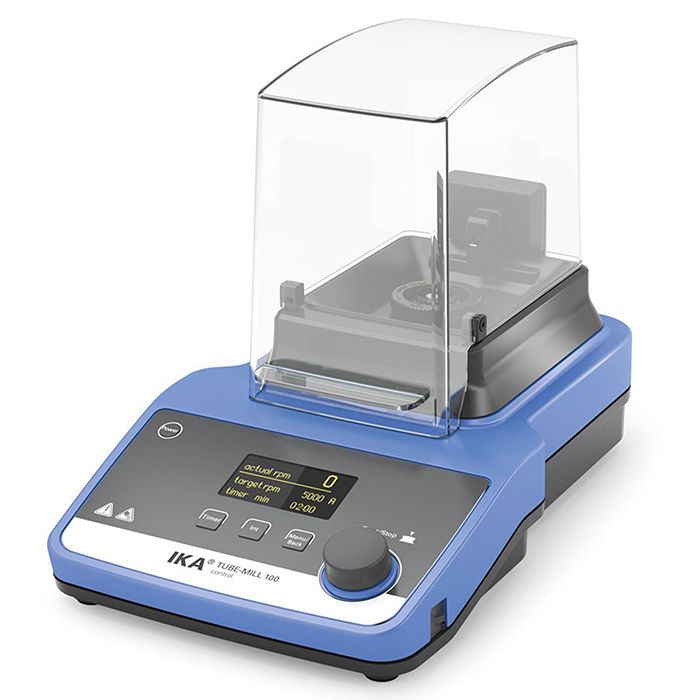

The world’s first patented Tube Mill 100 control is a batch mill with disposable grinding chambers. Eliminates possibility of cross-contamination and the effort of cleaning. The Tube Mill 100 control accommodates larger grinding chambers with a maximum volume of 100 ml (MT 100) . The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time. The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials. It is especially suitable for grinding seeds, such as corn and wheat. The mill will only start when the hood is closed, making it safe to use.

Features and Benefits:

Clear and multilingual OLED display (incl. error code display)

Timer, adjustable from 5s - 3 min
USB interface (control and document all parameters)
Interval operation optional
Infinitely variable speed (5,000 - 25,000 rpm)
Various operating modes
Adjustable safety speed and time
Programmable and storable test conditions
Reproducible test results
Touch keypad

Technical Data:

Motor Rating Input	100W
Motor Rating Output	80W
Speed Range	5,000 - 25,000rpm
Process Type	Batch
Circumferential Speed Max	65m/s
Useable Volume Max	100mL
Feed Hardness Max	5 Mohs
Feed Grain Size Max	10mm
Mill Feed can be cooled in milling chamber with dry ice	Yes
Operating Principle	Cutting / Impact
Speed Deviation	+/- 2%
Dimensions (W x H x D)	180 x 212 x 300mm
Weight	2.8Kg
Protection Class	80%
USB Interface	USB-B
