Stirrer Magnetic IKA I-MAG Magnetic Stirrer up to 300L (pharma design)

Stock:

Out of Stock

Add to Favourites

Downloads

Description

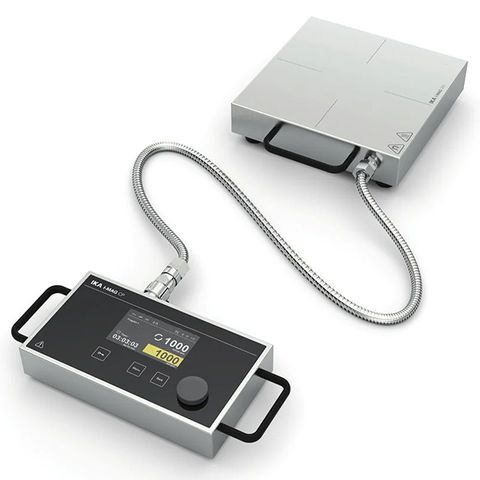

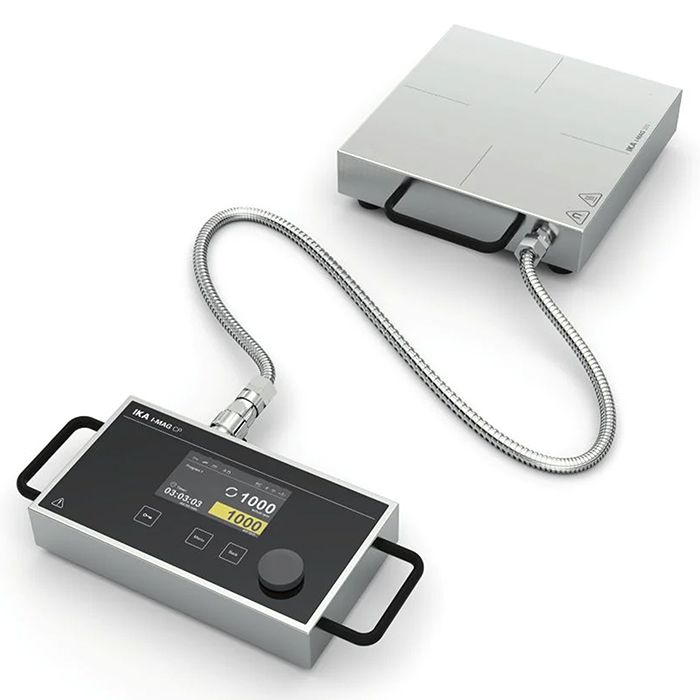

I-MAG is a powerful yet compact magnetic stirrer for applications in laboratory and production environments.

In combination with the I-MAG SP set-up frames for large vessels, which are available as accessories, up to 300 liters of water can be mixed efficiently. The wired operating unit (controller) ensures convenient handling and simple integration into e.g. process engineering systems.

The robust drive unit (IP protection class 64) consists of the high-torque and wear-free motor and the magnetic coupling with high-performance neodymium magnets. This enables the effective mixing of viscous media as well as mixing in vessels with a larger distance between the installation surface and the stirring rod (e.g. double-walled containers or vessels with insulated bottoms).

In order to reliably achieve high speeds even under difficult conditions, I-MAG has an adjustable start-up speed that prevents the magnetic stirring bar from breaking off during the acceleration phase. Process reliability is additionally achieved by the integrated detection of the magnetic stirring bar coupling. In the event of a tear-off or failure of the magnetic coupling, the user is informed via the operating unit.

The I-MAG controller has a variety of digital and analog interfaces. Equipped in this way, the device can, for example, be controlled with a foot switch or operating button or can be integrated into a network via USB/LAN/WIFI. With appropriate software (for example labworldsoft® 6), I-MAG can thus be integrated into an automated plant process.

Features and Benefits:

Drive with very high IP protection class 64: unrestricted use even under harsh environmental conditions thanks to enclosed stainless steel housing
Electronically controlled motor for very stable speeds even under load for reproducible results
Secure and ergonomic mounting of the controller directly on the vessel or with a stand rod using the I-MAG UHC universal holder (available as accessory)
Multilingual menu navigation

Technical Data (I-MAG Stirrer):

Stirring Positions	1
Speed Deviation	+/- 10rpm
Stirring Quantity max. per stirring positions (H20)	300L
Maximum Load	75kg
Stirring Quantity max. (without extension platform I-MAG-SP)	50L
Motor Rating Output	90W
Direction of Rotation	Right / Left
Speed Display Set Value	TFT
Speed Display Actual Value	TFT
Speed Adjustment	Turning Knob
Speed Range	100 - 1,500rpm
Setting Accuracy Speed	10rpm
Stirring Bar Length	30 - 140mm
Set-up Plate Material	Stainless Steel 1.4301
Set-up Plate Dimensions	260 x 260mm
Automatic Reverse Rotation	Yes
Intermittent Mode	Yes
Break Detection Stirring Bar	Yes
Timer	Yes
Timer Display	TFT
Time Setting Range	1 - 14,399min
Programs	Yes
Analog Pedal Control	Yes
Cable from Controller to Device	2,000mm
Dimensions (W x H x D)	260 x 70 x 300mm
Weight	8kg
RS232 Interface	Yes
USB Interface	Yes USB-B
WiFi Interface	Yes
Analog Output	Yes
Analog Input	Yes
