Adapter Set O DIN S-1
Stock:
Out of Stock
Downloads
Description

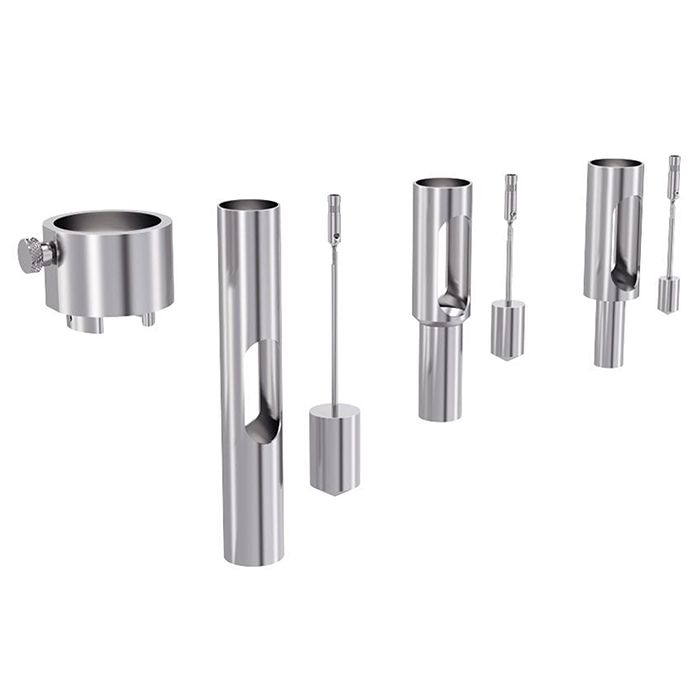

The open DIN spindle set (O-DINS-1) measures viscosities according to DIN 53019 and can be used with customer-specific vessels. The set includes a single-wall-open-jacket to quickly dive into the sample liquid as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate and shear stress is included. The maximum measurable viscosity is 50 000 mPas.
Technical Data:
| Spindle geometry | Cylinder |
| Connection | Thread M2.5LH |
| Flow Jacket | Yes |
| Mounting Bracket | Yes |
| Sample container | Specified chamber |
| Working temperature max. | 100c |
| Viscosity accuracy (FSR) | 2% |
| Viscosity Repeatability (FSR) | 0.2% |
| Min FSR match ROTAVISC lo-vi | 6mPa.s |
| Max FSR match ROTAVISC lo-vi | 50,000mPa.s |
| Min FSR match ROTAVISC me-vi | 61mPa.s |
| Max FSR match ROTAVISC me-vi | 50,000mPa.s |
| Min FSR match ROTAVISC hi-vi I | 122mPa.s |
| Max FSR match ROTAVISC hi-vi I | 50,000mPa.s |
| Min FSR match ROTAVISC hi-vi II | 488mPa.s |
| Max FSR match ROTAVISC hi-vi II | 50,000mPa.s |
| Material in contact with medium | Stainless steel 1.4404 / LDPE |
| Dimensions (W x H x D) | 390 x 102 x 310mm |
| Weight | 1.919kg |
