Stock Code:
0025000377I

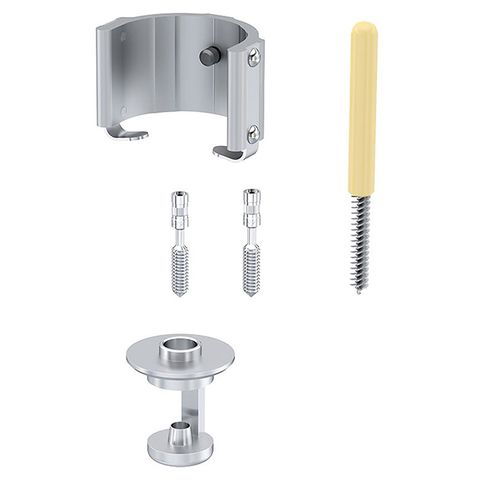

Adapter Set SAS-1 Spiral for IKA Viscometers
Stock:
Out of Stock
Downloads
Description
Spiral adapter to measure the viscosity of very sticky and other viscous samples. Additionally, it is possible to analyse the fluid behavior of different shear rates.
Technical Data:
| Spindle geometry | Spiral |
| Connection | Thread M2.5LH |
| Diameter | 6.35mm |
| Spindle length | 41.2mm |
| Mounting Bracket | Yes |
| Working temperature max. | 300c |
| Viscosity accuracy (FSR) | 2% |
| Viscosity Repeatability (FSR) | 0.2% |
| Min FSR match ROTAVISC lo-vi | 984mPa.s |
| Max FSR match ROTAVISC lo-vi | 984,000mPa.s |
| Min FSR match ROTAVISC me-vi | 10,500mPa.s |
| Max FSR match ROTAVISC me-vi | 1,100,000mPa.s |
| Min FSR match ROTAVISC hi-vi I | 21,000mPa.s |
| Max FSR match ROTAVISC hi-vi I | 21,000,000mPa.s |
| Min FSR match ROTAVISC hi-vi II | 84,000mPa.s |
| Max FSR match ROTAVISC hi-vi II | 84,000,000mPa.s |
| Material in contact with medium | Stainless steel 1.4404 / LDPE |
| Dimensions (W x H x D) | 160 x 82 x 270mm |
| Weight | 0.527kg |
Details
-
Pack Size:EACH
