Stock Code:
0025000407I
Adapter Set VAN-1 Vane Spindle for IKA Viscometers
Stock:
Out of Stock
Downloads
Description

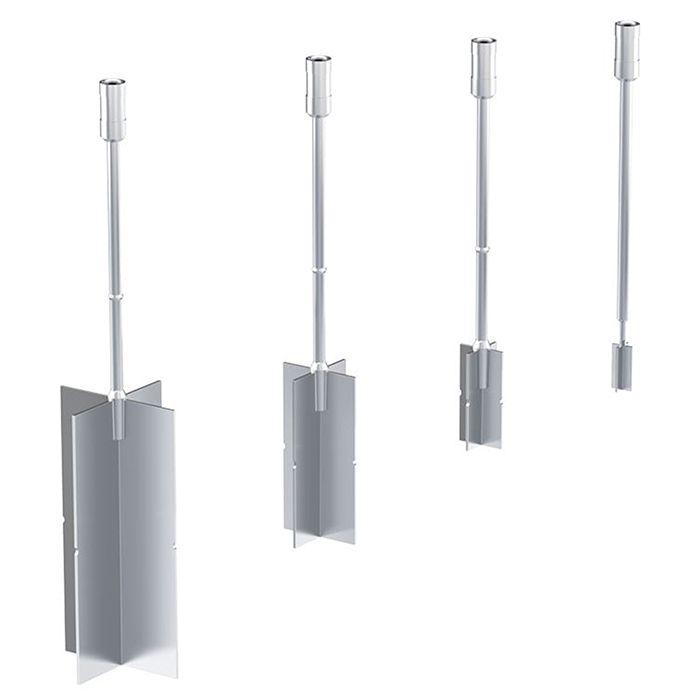

The vane spindle set allows the viscosity measurement of suspensions. Four vane spindles are included in the delivery.
Technical Data:
| Spindle geometry | Vane |
| Connection | Thread M2.5LH |
| Quick plug connector | Yes |
| Hook connector | Yes |
| Sample volume | 500mL |
| Sample container | 600mL beaker |
| Working temperature max. | 300c |
| Viscosity accuracy (FSR) | 2% |
| Viscosity Repeatability (FSR) | 0.2% |
| Min FSR match ROTAVISC lo-vi | 24.6mPa.s |
| Max FSR match ROTAVISC lo-vi | 5,100,000mPa.s |
| Min FSR match ROTAVISC me-vi | 262mPa.s |
| Max FSR match ROTAVISC me-vi | 54,300,000mPa.s |
| Min FSR match ROTAVISC hi-vi I | 524mPa.s |
| Max FSR match ROTAVISC hi-vi I | 108,600,000mPa.s |
| Min FSR match ROTAVISC hi-vi II | 2,100mPa.s |
| Max FSR match ROTAVISC hi-vi II | 434,000,000mPa.s |
| Material in contact with medium | Stainless steel 1.4404 / LDPE |
| Dimensions (W x H x D) | 160 x 82 x 270mm |
| Weight | 0.432kg |
Details
-
Pack Size:EACH
