Stock Code:
0025002638I

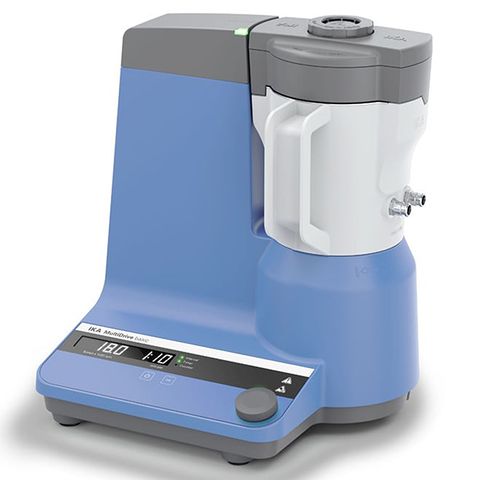

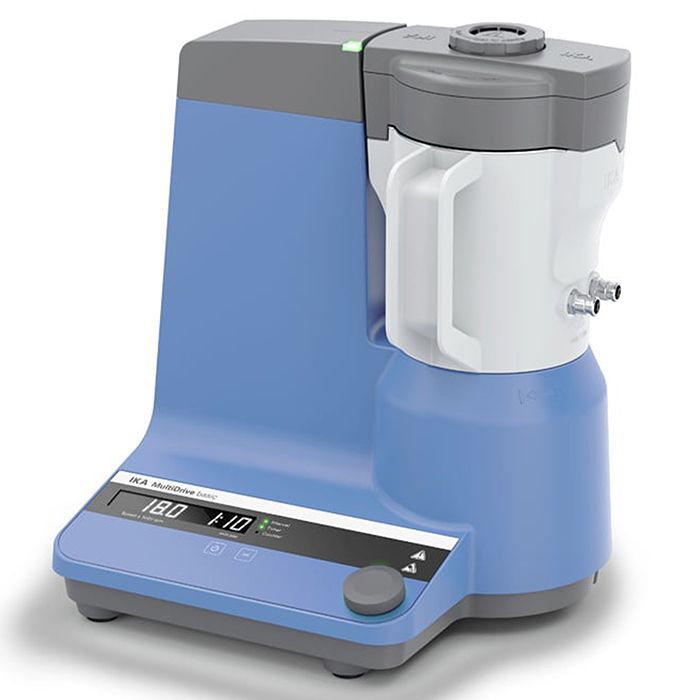

Mill IKA MultiDrive Basic - For mixing and grinding

Stock:
1 - 9

Add To Quote

Description

Description

Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available (vessels not included in delivery). With MultiDrive basic it is possible to mix or grind. There is a USB interface available for easy actuation and documentation.


High performance

Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output.


Interval operation

The option of interval programming is simple to activate at the press of a button. Interval operation is an asset during the coarse crushing of hard samples or for extra thorough blending.


Integrated cooling

A cooling system is integrated in the milling chambers (MI, available as accessory), which allows indirect heat dissipation. Thus, coolant and sample remain separate.


Variety of vessels (accessory)

MultiDrive provides the right vessel for each grinding task. For MultiDrive basic, milling chambers (MI) for dry grinding and blending vessels (BL) for wet grinding are available. Vessels are not part of the scope of delivery.



Technical Data:

Process TypeBatch
Operating PrincipleCutting / Impact / Blending / Dispersing
Motor Rating Input1,000W
Motor Rating Output800W
Speed Range3,000 - 20,000rpm
Speed Deviation+/- 5%
Motor Principle Brushless DC
Display 7 Segment LED
Vessels DetectionYes
Dimensions300 x 350 x 250mm
Weight8.5Kg
Protection ClassIP31
USB InterfaceMicro-USB


Supplied With:

  • IKA MultiDrive basic
  • Socket wrench
  • Disassembly tool 1
  • Disassembly tool 2
  • Cleaning brush
  • USB Cable - USB A to Micro-B, 2 m

Details

Details

  • Pack Size:
    EACH
