Stock Code:
0025002643I

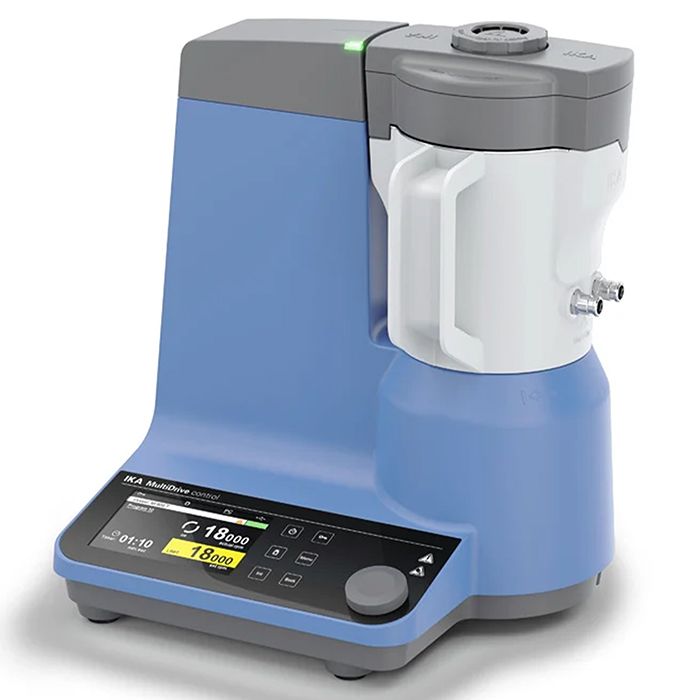

Mill IKA MultiDrive Control - For mixing and grinding

Stock:
Out of Stock

Add To Quote

Description

Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available. MultiDrive control mixes, grinds and is also fitted with a dispersion vessel and a disposable tube. There is a USB interface available for easy actuation and documentation.


High performance

Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output.


Interval operation

The option of interval programming is simple to activate at the press of a button. Interval operation is an asset during the coarsecrushing of hard samples or for extra thorough blending.


Integrated cooling

A cooling system is integrated in the milling chambers (MI, available as accessory), which allows indirect heat dissipation. Thus, coolant and sample remain separate.


TFT-display

A clear TFT-display guarantees user-friendly operation.Weighing functionThe weighing function is also integrated into the user-friendly workflow of IKA MultiDrive control. Weighing is performed before crushing using the same mixing cup, so that no transfer of contents is required.


Variety of vessels (accessory)

MultiDrive provides the right vessel for each grinding task. For MultiDrive control, milling chambers (MI) for dry grinding, blending vessels (BL) for wet grinding, dispersing vessels (DI) with rotor-stator system as well as autoclavable milling tubes (MT 150) and blending tubes (BT 250). Additionally, there are vessels with temperature measurement (T). A temperature limit can be set for temperature-sensitive materials, or for specific planned reactions to protect against overheating.The vessels are not part of the scope of delivery.



Technical Data:
Process TypeBatch
Operating PrincipleCutting / Impact / Blending / Dispersing
Motor Rating Input1,000W
Motor Rating Output800W
Speed Range3,000 - 20,000rpm
Speed Deviation+/- 5%
Motor PrincipleBrushless DC
DisplayTFT
RFID Reader / Writer UnitYes
Temperature DisplayYes
Temperature Measurement Resolution0.1K
Accuracy of Temperature Measurement+/-1K
Temperature Limit Min-50c
Temperature Limit Max120c
Monitoring Maintain TimeYes
Weighing FunctionYes
Weighing Range5 - 4,000g
Weighing Resolution1g
Load Capacity Weighing Function Max4Kg
Weighing Accuracy+/- (0.3%+2)g
Vessels DetectionYes
Ramp ProgrammingYes
Dimensions300 x 350 x 250mm
Weight9.5Kg
USB InterfaceMicro-USB
WPAN InterfaceYes


Supplied With:

  • IKA MultiDrive control
  • Socket wrench
  • Disassembly tool 1
  • Disassembly tool 2
  • Cleaning brush
  • USB Cable - USB A to Micro-B, 2 m
